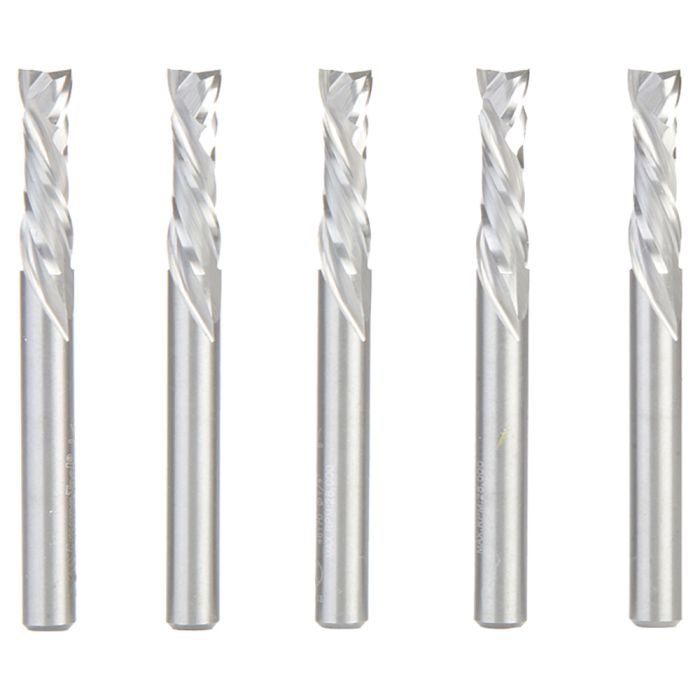

Amana Tool 46170-5 7/8" CNC Solid Carbide Compression Spiral Router Bit, 5 Piece
Ships direct from manufacturer
Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish.
*Oriented Strand Board is an engineered wood particle board.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| Flutes | 2 |
|---|
| Material | Solid Carbide |
|---|
| Package Size | 5 |
|---|
| Type | Router Bit |
|---|
| Diameter (D) | 1/4" |
|---|
| Cutting Height (B) | 7/8" |
|---|
| Cutting Height (B1) | 7 mm |
|---|
| Shank Diameter (d) | 1/4" |
|---|
| Overall Length (L) | 2 1/2" |
|---|
| Style | Compression Spiral |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood) | 110" / .0031" / 55" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 220" / .0061" / 110" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plywood) | 110" / .0031" / 55" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plastic) | 110" / .0031" / 55" |
|---|
| Application | For Cutting Laminate, Laminated Plywood, Melamine, Melamine Particle Board, MDF/HDF, Oriented Strand Board (OSB)*, Particle Board, Softwood/Hardwood, Veneered Plywood |
|---|
