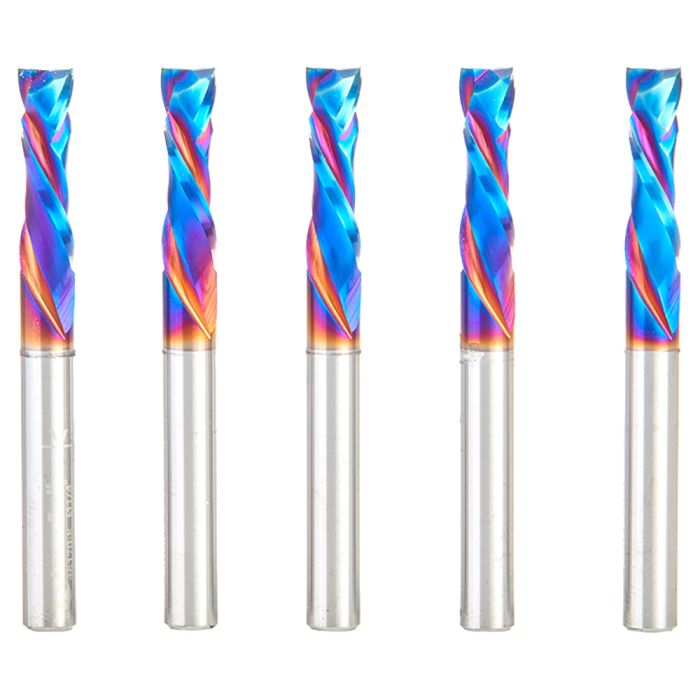

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. Flawless compression cuts. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off
*Oriented Strand Board is an engineered wood particle board.
WARNING: Proposition 65 Warning for California Residents View Details
nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
Coating prevents high heat and oxidation which is detrimental to cutting tool performance
Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Flutes
2
Material
Solid Carbide
Package Size
5
Type
Router Bit Set
Diameter (D)
1/4"
Cutting Height (B)
7/8"
Cutting Height (B1)
7 mm
Shank Diameter (d)
1/4"
Overall Length (L)
2 1/2"
Coating
nACo Ceramic
Flute Type
Compression Spiral
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood)
110" / .0031" / 55"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate)
220" / .0061" / 110"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plywood)
110" / .0031" / 55"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plastic)
