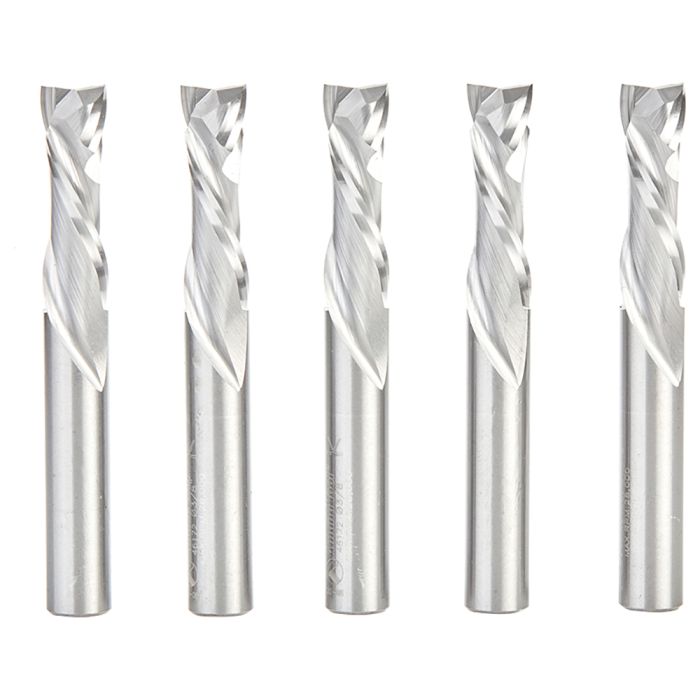

Amana Tool 46172-5 3/8" CNC Solid Carbide Compression Spiral Router Bit, 5 Piece
Ships direct from manufacturer
Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish.
*Oriented strand board is an engineered wood particle board.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| Application | Laminate, Laminated Plywood, Melamine, Melamine Particle Board, MDF/HDF, Oriented Strand Board (OSB)*, Particle Board, Softwood/Hardwood, Veneered Plywood |
|---|
| Type | Router Bit |
|---|
| Material | Solid Carbide |
|---|
| Flute Type | Compression Spiral |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood/Plastic) | 200" / 0.0056" / 100" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 400" / 0.0111" / 200" |
|---|
| Flutes | 2 |
|---|
| Diameter (D) | 3/8" |
|---|
| Cutting Height (B) | 1 1/4" |
|---|
| Cutting Height (B1) | 9 mm |
|---|
| Shank Diameter (d) | 3/8" |
|---|
| Overall Length (L) | 3" |
|---|
| Package Size | 5 Piece |
|---|
