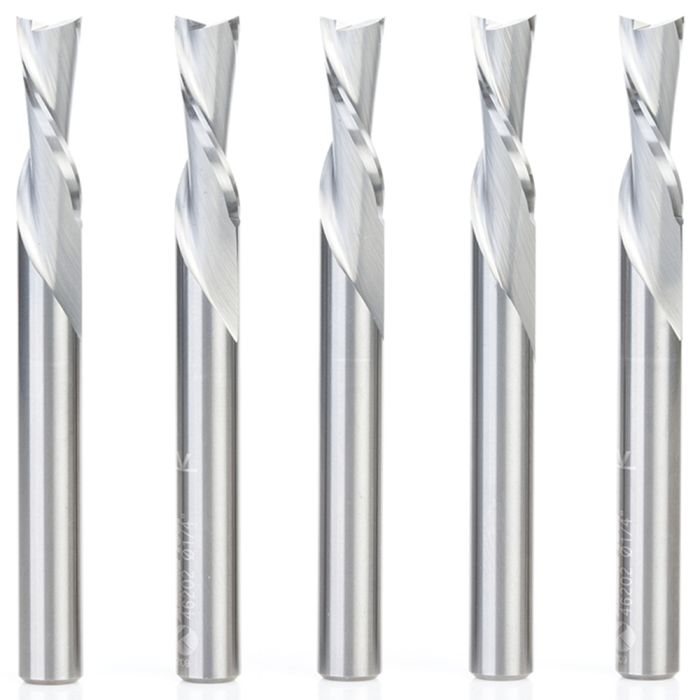

Amana Tool 46202-5 1/4" Solid Carbide Spiral Plunge Router Bit Set, 5 Piece

SKU
46202-5
$179.32
Ships direct from manufacturer?

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685846209
Flutes2
MaterialSolid Carbide
Type Router Bit Set
Direction Down-Cut
Diameter (D) 1/4"
Cutting Height (B) 3/4"
Shank Diameter (d) 1/4"
Overall Length (L) 2 1/2"
Style Spiral Plunge
Suitable for Use with Primarily Used on CNC Machines and Other Automatic Routers, Handheld and Table-Mounted Portable Routers
Feed Rate IPM / Chip Load Per Tooth / Ramp Down (Wood/Plywood) 180" / .0050" / 90"
Feed Rate IPM / Chip Load Per Tooth / Ramp Down (MDF/Laminate) 215" / .0060" / 107.5"
Operating Spindle Speed 18,000 RPM
Package Size 5 Piece
