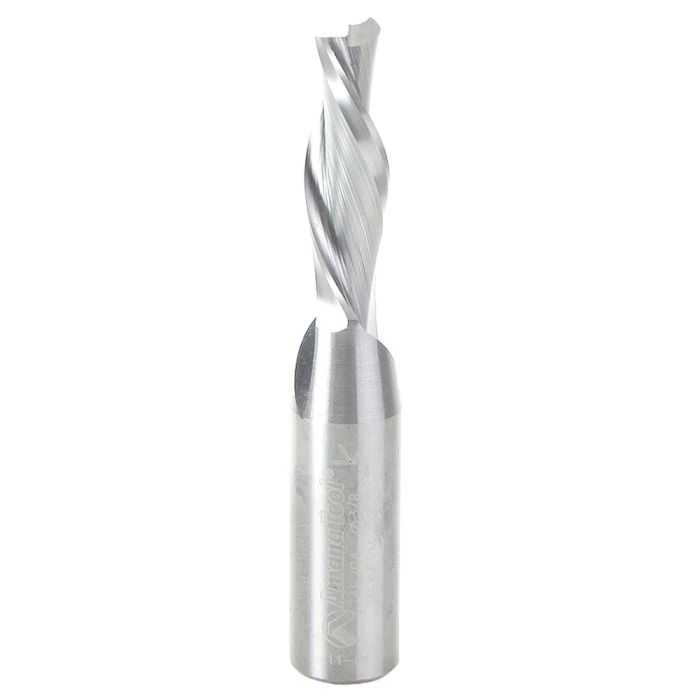

Amana Tool 46204 3/8" x 1/2" Solid Carbide Down-Cut Spiral Plunge Router Bit

SKU
46204
$106.95
Ships direct from manufacturer ?
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts. Primarily used on CNC machines and other automatic routers.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868586204
PDFs
ApplicationFor Particleboard, Plywood, and Laminate
Flutes2
MaterialSolid Carbide
TypeRouter Bit
DirectionDown-Cut
Diameter (D)3/8"
Cutting Height (B)1 1/4"
Shank Diameter (d)1/2"
Overall Length (L)3"
StyleSpiral Plunge
Maximum Speed (RPM)28,000 RPM
Suitable for Use withHandheld and Table-Mounted Portable Routers
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood)230" / .0064" / 115"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate)390" / .0108" / 195"
