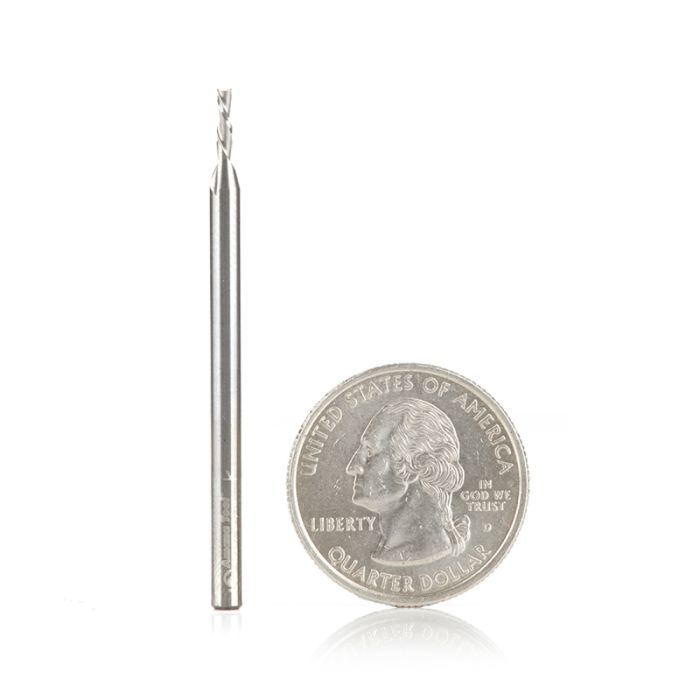

Amana Tool 46237 1/16" Solid Carbide Spiral Plunge Router Bit

SKU
46237
$33.67
Ships direct from manufacturer ?

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate.

Warning! Due to the extremely small diameters involved, bits are not guaranteed against breakage. Please exercise caution to the accurate calculations of all feed and speed rates.

Disclaimer: It is important to understand that these values are only recommendations.

Note: Due to small diameter, bit is not guaranteed against breakage.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685462379
Flutes2
MaterialSolid Carbide
TypeRouter Bit with Chipbreaker
DirectionDown-Cut
Diameter (D) 1/16"
Cutting Height (B) 3/16"
Shank Diameter (d) 1/8"
Overall Length (L)2"
StyleSpiral Plunge
Operating Spindle Speed18,000 RPM
Feed Rate IPM / Chip Load Per Tooth / Ramp Down (Wood/Plywood)70" / .0020" / 35"
Feed Rate IPM / Chip Load Per Tooth / Ramp Down (MDF/Laminate)105" / .0030" / 52.5"
Suitable for Use withCNC Machines and Other Automatic Routers, Handheld and Table-Mounted Portable Routers
