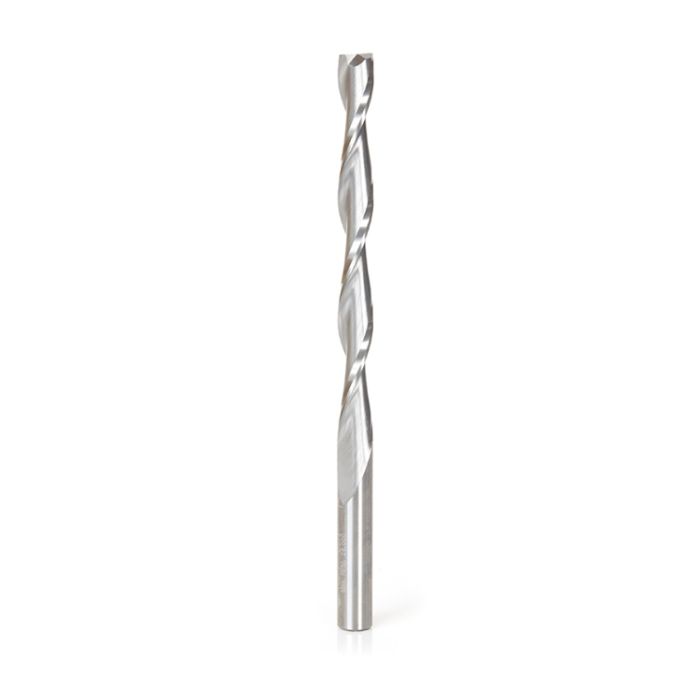

Amana Tool 46277 3/8" Solid Carbide Up-Cut Square End Spiral CNC Router Bit

SKU
46277
$131.64
Ships direct from manufacturer?

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Flutes2
MaterialSolid Carbide
TypeBoring Bit
DirectionUp-Cut
Diameter (D)3/8"
Cutting Height (B)4"
Shank Diameter (d)3/8"
Overall Length (L)6"
Cutting End TypeSquare End
Flute TypeSpiral
Feed Rate IPM** / Chip Load Per Tooth (Foam)140" - 210" / 0.004" - 0.006"
ApplicationFor Milling Crosslinked Polyethylene Foam (XLPE), Ethafoam**, Ethylene-vinyl Acetate Foam (EVA), Expanded Polypropylene (EPP)*, Expanded Polystyrene (EPS), Extruded Polystyrene Foam (XPS), Flexible Polyurethane Foam (FPF), Fomex, High Density Urethane (HUD Board), PALFOAM, Polycarbonate (Lexan), Polyethylene Foam**, Polylam**, Polyurethane Foam
