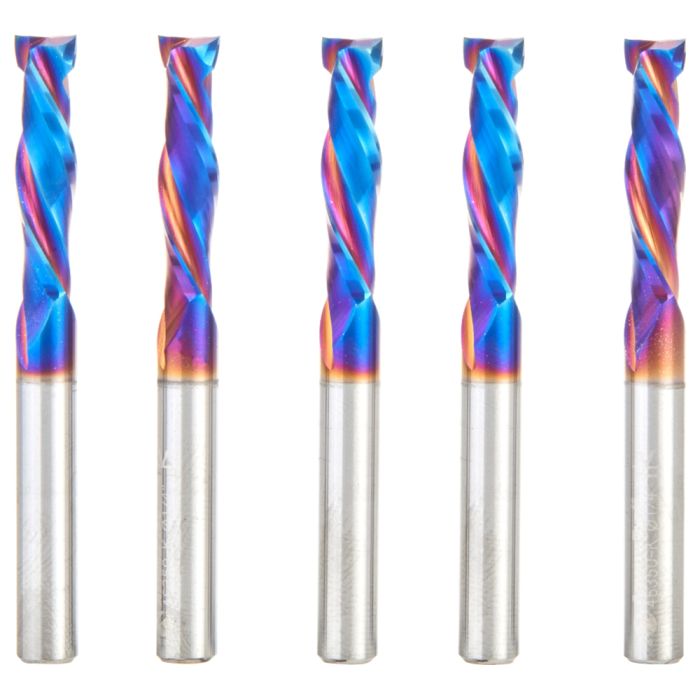

Amana Tool 46350-K-5 Spektra 1/4" CNC Solid Carbide Mortise Compression Spiral Router Bit, 5 Piece

SKU
46350-K-5
$454.30
Ships direct from manufacturer ?

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising grooving and dado. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
ApplicationMDF/HDF, Laminate, Laminated Plywood, Melamine, Particle Board, Softwood/Hardwood, Veneered Plywood
TypeRouter Bit
MaterialSolid Carbide
Flute TypeMortise Compression Spiral
CoatingNanocomposite
Feed Rate IPM* / Chip Load Per Tooth (Wood, Plywood, Plastic)110" / 0.0031" / 55"
Feed Rate IPM* / Chip Load Per Tooth (Wood, MDF, Sign-Foam)220" / 0.0061" / 110"
Recommended Speed (RPM)20,000 RPM - 21,000 RPM
Flutes2
Diameter (D)1/4"
Cutting Height (B)1"
Cutting Height (B1)1/8"
Shank Diameter (d)1/4"
Overall Length (L)2 1/2"
Package Size5 Piece
