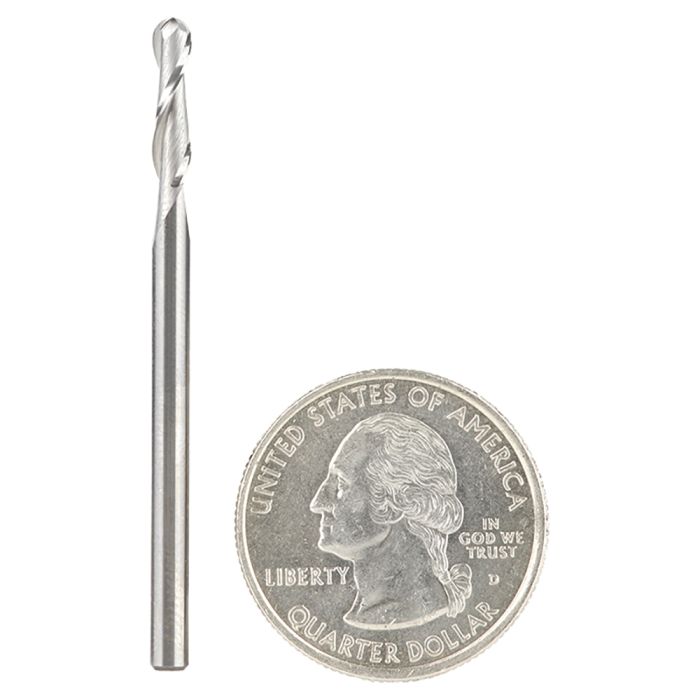

Amana Tool 46375 1/8" Up-Cut Ball Nose Spiral Router Bit
Ships direct from manufacturer
Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 00738685463758 |
|---|
| Flutes | 2 |
|---|
| Material | Solid Carbide |
|---|
| Type | Router Bit |
|---|
| Direction | Up-Cut |
|---|
| Diameter (D) | 1/8" |
|---|
| Radius (R) | 1/16" |
|---|
| Cutting Height (B) | 1/2" |
|---|
| Shank Diameter (d) | 1/8" |
|---|
| Overall Length (L) | 2" |
|---|
| Style | Spiral |
|---|
| Flute Type | Ball Nose |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Aluminum) | 110" - 190" / 0.003" - 0.005" |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Softwood) | 190" - 260" / 0.005" - 0.007" |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Hardwood) | 110" - 190" / 0.003" - 0.005" |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (MDF) | 190" - 260" / 0.005" - 0.007" |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Soft Plastic) | 70" - 150" / 0.002" - 0.004 |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Hard Plastic) | 70" - 150" / 0.002" - 0.004 |
|---|
| Feed Rate IPM / Chip Load Per Tooth / (Sign Foam) | 110" - 190" / 0.005" - 0.007" |
|---|
| Application | Soft/Hard Wood, Aluminum, MDF, Soft/Hard Plastic, Sign Foam |
|---|
| Operating Spindle Speed | 18,000 RPM |
|---|
