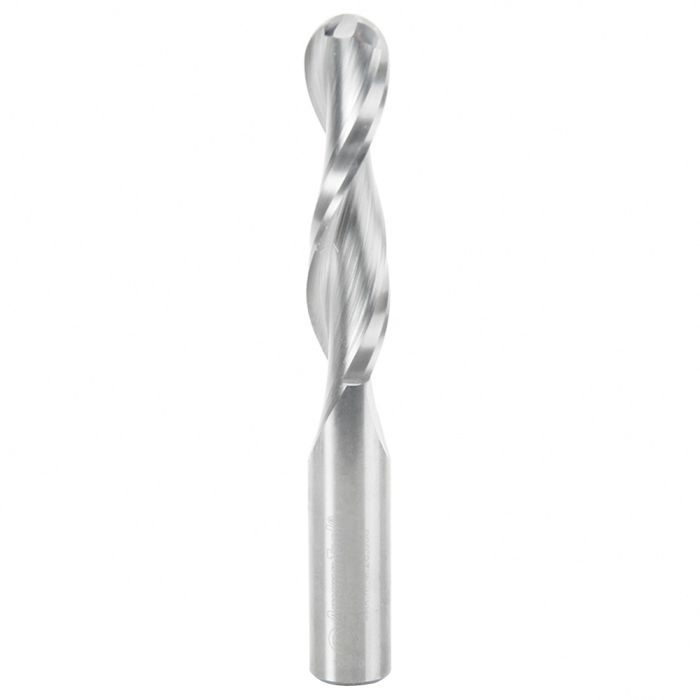

Amana Tool 46384 2-1/8" Solid Carbide Up-Cut Ball Nose Spiral Router Bit
Ships direct from manufacturer
Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868546384 |
|---|
| PDFs | |
|---|
| Application | Soft/Hard Wood, Aluminum, MDF, Soft/Hard Plastic, Sign Foam |
|---|
| Flutes | 2 |
|---|
| Material | Solid Carbide |
|---|
| Type | Router Bit |
|---|
| Direction | Up-Cut |
|---|
| Diameter (D) | 1/2" |
|---|
| Radius (R) | 1/4" |
|---|
| Cutting Height (B) | 2 1/8" |
|---|
| Shank Diameter (d) | 1/2" |
|---|
| Overall Length (L) | 4" |
|---|
| Maximum Speed (RPM) | 28000 RPM |
|---|
| Style | Ball Nose Spiral |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Aluminum) | 360" - 430" / 0.010" - 0.012" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Softwood) | 330" - 400" / 0.009" - 0.011" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Hardwood) | 260" - 330" / 0.007" - 0.009" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (MDF) | 290" - 360" / 0.008" - 0.010" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Soft Plastic) | 220" - 290" / 0.006" - 0.008" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Hard Plastic) | 220" - 290" / 0.006" - 0.008" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Sign Foam) | 290" - 360" / 0.008" - 0.010" |
|---|
