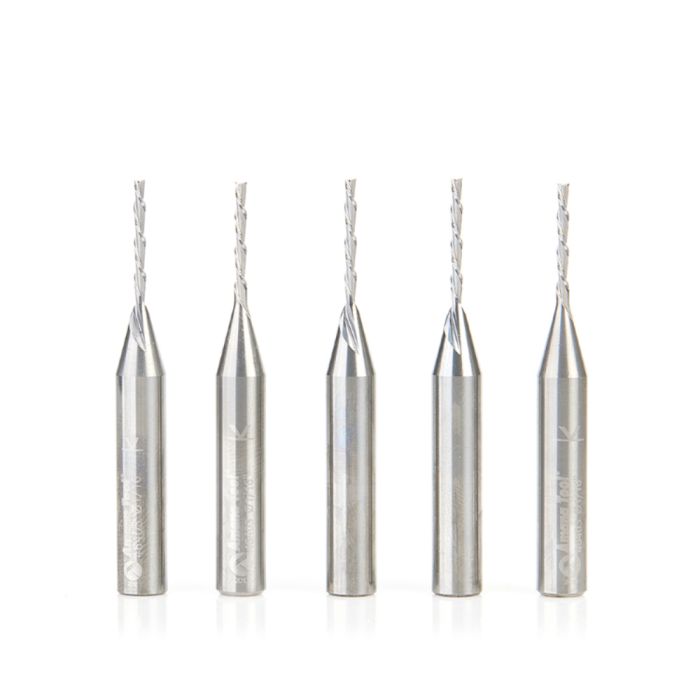

Amana Tool 46403-5 1/16" Solid Carbide Spiral Plunge Down-Cut Router Bit, 5 Piece

SKU
46403-5
$212.93
Ships direct from manufacturer?

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Primarily used on CNC machines and other automatic routers.

Note: Due to small diameter, bit is not guaranteed against breakage.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Amana Tool Corp.
Condition New
Flutes 2
Material Solid Carbide
Package Size 5
Type Router Bit
Direction Down Cut
Diameter (D) 1/16"
Cutting Height (B) 1/2"
Shank Diameter (d) 1/4"
Overall Length (L) 2"
Style Spiral Plunge
Spindle Speed (RPM) 18,000 RPM
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood) 70" / .0020" / 35"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) 105" / .0030" / 52.5"
Suitable for Use with Handheld and Table-Mounted Portable Routers
Application For Creating Grooves and Dado Cuts in Particleboard, Plywood and Laminate
