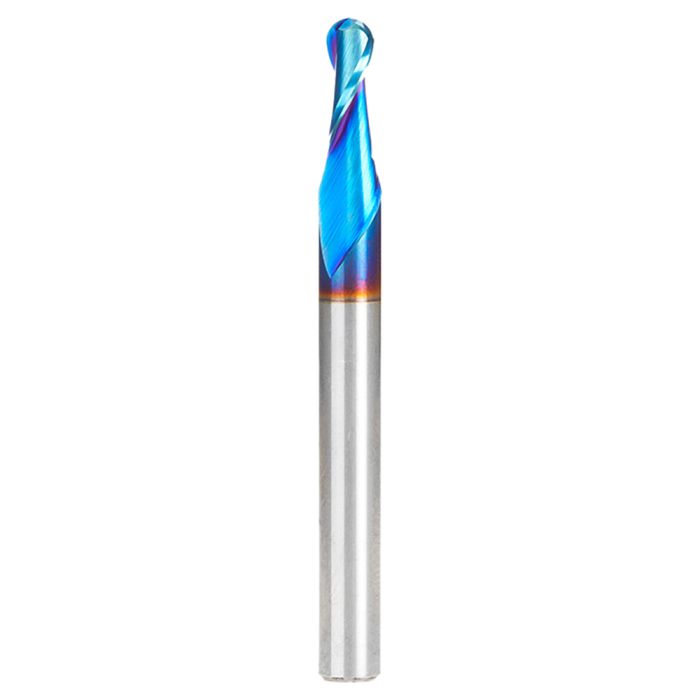

Amana Tool 46424-K 3/16" Spektra Up-Cut Spiral Ball Nose Router Bit

SKU
46424-K
$65.70
Ships direct from manufacturer?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

Amana Tool's high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material.

Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

*A soft plastic cardboard made with super soft super flexible PVC.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685446423
Features

With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Flutes2
MaterialSolid Carbide
TypeRouter Bit
DirectionUp-Cut
Diameter (D)3/16"
Radius (R)3/32"
Cutting Height (B)1/2"
Shank Diameter (d)1/4"
Overall Length (L)2 1/2"
StyleSpiral
Flute TypeBall Nose
Feed Rate IPM / Chip Load Per Tooth 75" - 100" / 0.003" - 0.004"
Operating Spindle Speed18,000 RPM
ApplicationPlastic, Acrylic, Acrylic Stone, Acrylonitrile Butadiene Styrene (ABS), Corian, Coroplast*, Fomex, High Impact Polystyrene (HIPS), High Pressure Laminates (HPL), Hydroxy-Terminated Polyether (HTPE), Low Density Polyethylene (LDPE), LubX, Perspex Cast Acrylic Sheet, Plexiglas, Poly (methyl methacrylate) (PMMA), Polyethylene Terephthalate Glycol-Modified (PETG / PET-G), Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde., Sign Foam, Solid Surface, StarBoard (King StarBoard 'R') High Density Polyethylene Sheet (HDPE), Thermoplastic Polyolefin (TPO), Urethane, Wood
