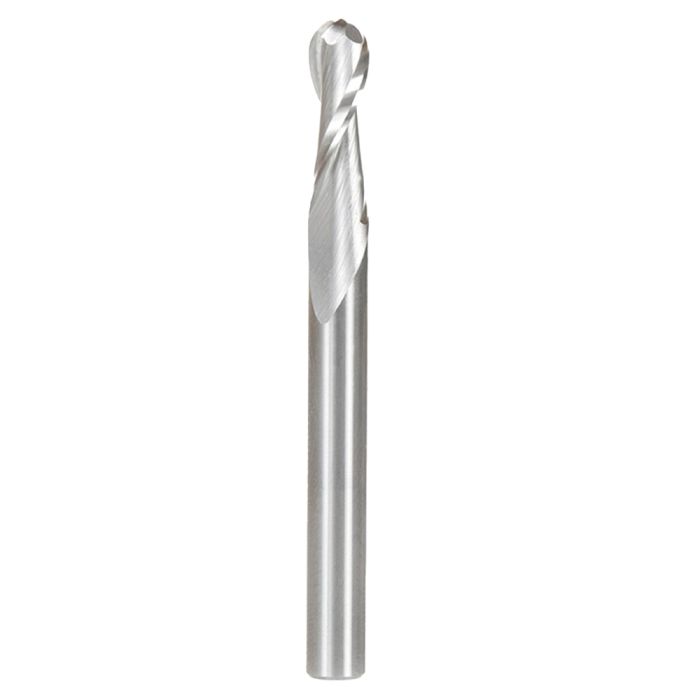

Amana Tool 46456 6mm Up-Cut Spiral Ball Nose Router Bit

SKU
46456
$41.43
Ships direct from manufacturer?

Amana Tool's high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material.

Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.

*A soft plastic cardboard made with super soft super flexible PVC.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685464564
Flutes2
MaterialSolid Carbide
TypeRouter Bit
Diameter (D)6 mm
Radius (R)3 mm
Cutting Height (B)22 mm
Shank Diameter (d)6 mm
Overall Length (L)63 mm
DirectionUp-Cut
StyleSpiral
Flute TypeBall Nose
ApplicationPlastic, Acrylic, Acrylic Stone, Acrylonitrile Butadiene Styrene (ABS), Aluminum, Corian, Coroplast*, Fomex, High Impact Polystyrene (HIPS), High Pressure Laminates (HPL), Hydroxy-Terminated Polyether (HTPE), Low Density Polyethylene (LDPE), LubX, Non-Ferrous Materials, Perspex Cast Acrylic Sheet, Plexiglas, Poly (methyl methacrylate) (PMMA), Polyethylene Terephthalate Glycol-Modified (PETG / PET-G), Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde., Sign Foam, Solid Surface, StarBoard (King StarBoard 'R') High Density Polyethylene Sheet (HDPE), Thermoplastic Polyolefin (TPO), Urethane, Wood
Operating Spindle Speed18,000 RPM
Feed Rate IPM* / Chip Load Per Tooth75" - 100" / 0.003" - 0.005"
