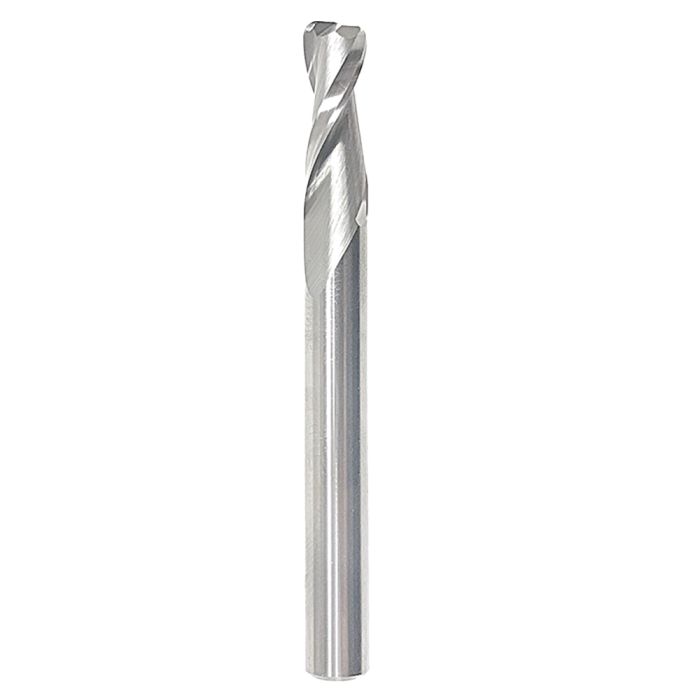

Amana Tool 46460 1/4" Up-Cut Spiral Plunge with Corner Radius Router Bit
Ships direct from manufacturer
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 00738685464601 |
|---|
| Features |
- Leaves an excellent finish and expels chips quickly
|
|---|
| Flutes | 2 |
|---|
| Material | Solid Carbide |
|---|
| Type | Router Bit |
|---|
| Direction | Up-Cut |
|---|
| Diameter (D) | 1/4" |
|---|
| Radius (R) | 1/16" |
|---|
| Cutting Height (B) | 3/4" |
|---|
| Shank Diameter (d) | 1/4" |
|---|
| Overall Length (L) | 2 1/2" |
|---|
| Style | Spiral Plunge with Corner Radius |
|---|
| Application | For Carving, Lettering, Decorative Doors and Sign Manufacturing, and for Cutting Aluminum, MDF, Soft/Hard Plastic, Soft/Hard Wood |
|---|
| Operating Spindle Speed | 18,000 RPM |
|---|
| Feed Rate IPM / Chip Load Per Tooth (Soft Wood) | 250" - 320" / 0.007" - 0.009" |
|---|
| Feed Rate IPM / Chip Load Per Tooth (Hard Wood) | 180" - 250" / 0.005" - 0.007" |
|---|
| Feed Rate IPM / Chip Load Per Tooth (MDF) | 210" - 290" / 0.006" - 0.008" |
|---|
| Feed Rate IPM / Chip Load Per Tooth (Hard / Soft Plastics) | 150" - 210" / 0.004" - 0.006" |
|---|
| Feed Rate IPM / Chip Load Per Tooth (Aluminum) | 150" - 210" / 0.004" - 0.006" |
|---|
