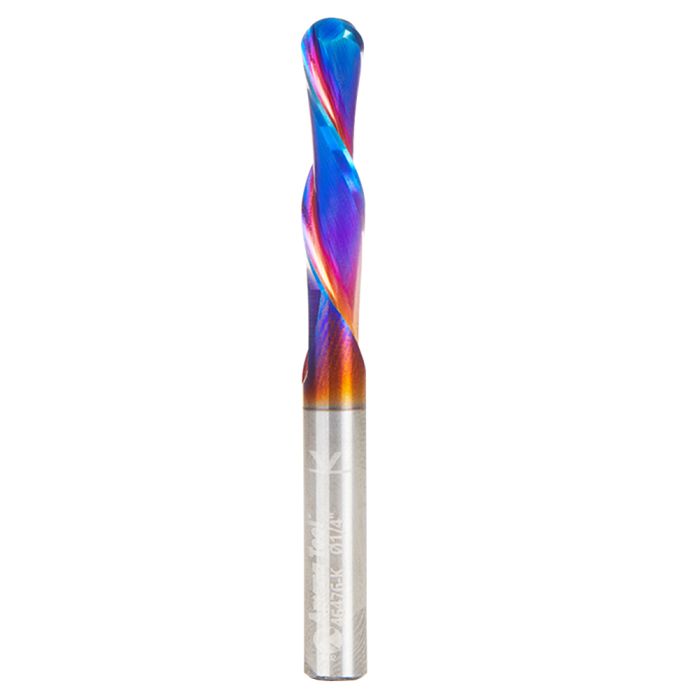

With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:
nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
Coating prevents high heat and oxidation which is detrimental to cutting tool performance
Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Application
For Cutting Soft/Hard Wood, MDF, Soft/Hard Plastic, Sign Foam
Flutes
2
Material
Solid Carbide
Type
Router Bit
Direction
Down-Cut
Diameter (D)
1/4"
Radius (R)
1/8"
Cutting Height (B)
1"
Shank Diameter (d)
1/4"
Overall Length (L)
2 1/2"
Coating
nACo Ceramic Coating
Flute Type
Ball Nose
Style
Spiral
Operating Spindle Speed
18,000 RPM
Feed Rate IPM / Chip Load Per Tooth (Soft Wood)
260" - 330" / 0.007" - 0.009"
Feed Rate IPM / Chip Load Per Tooth (Hard Wood)
190" - 260" / 0.005" - 0.007"
Feed Rate IPM / Chip Load Per Tooth (MDF)
220" - 290" / 0.006" - 0.008"
Feed Rate IPM / Chip Load Per Tooth (Soft Plastics)
150" - 220" / 0.004" - 0.006"
Feed Rate IPM / Chip Load Per Tooth (Hard Plastic)
