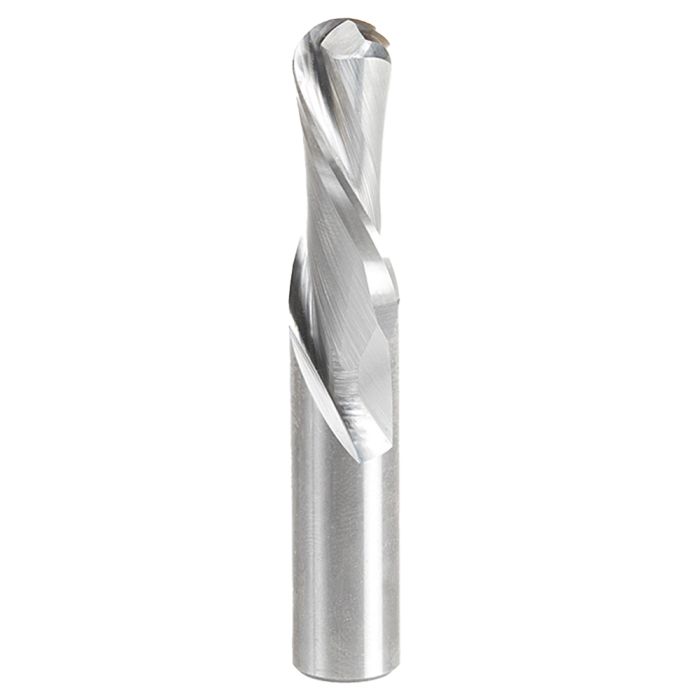

Amana Tool 46477 1/2" Down-Cut Ball Nose Spiral Router Bit
Ships direct from manufacturer
Used for carving decorative doors and sign manufacturing. Down-Cut design leaves an excellent finish and expels chips quickly.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 00738685464779 |
|---|
| Application | For Cutting Soft/Hard Wood, Aluminum, MDF, Soft/Hard Plastic, Sign Foam |
|---|
| Flutes | 2 |
|---|
| Material | Solid Carbide |
|---|
| Type | Router Bit |
|---|
| Direction | Down-Cut |
|---|
| Diameter (D) | 1/2" |
|---|
| Radius (R) | 1/4" |
|---|
| Cutting Height (B) | 1 1/4" |
|---|
| Shank Diameter (d) | 1/2" |
|---|
| Overall Length (L) | 3" |
|---|
| Flute Type | Ball Nose |
|---|
| Style | Spiral |
|---|
| Operating Spindle Speed | 18,000 RPM |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Aluminum) | 360" - 430" / 0.010" - 0.012" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Softwood) | 330" - 400" / 0.009" - 0.011" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Hardwood) | 260" - 330" / 0.007" - 0.009" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (MDF) | 290" - 360" / 0.008" - 0.010" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Soft Plastic) | 220" - 290" / 0.006" - 0.008" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Hard Plastic) | 220" - 290" / 0.006" - 0.008" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth (Sign Foam) | 290" - 360" / 0.008" - 0.010" |
|---|
