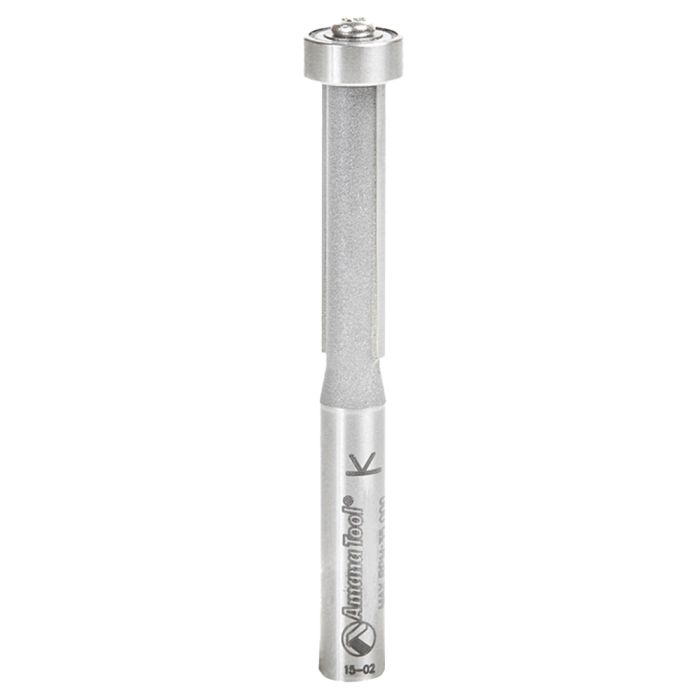

Amana Tool 47188 1/4" Carbide Tipped Overhang Trim Router Bit

SKU
47188
$19.20
Ships direct from manufacturer ?

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685471883
Replacement Bearing47704
Flutes2
MaterialCarbide Tip
TypeRouter Bit
Diameter (D)1/4"
Cutting Height (B)1"
Shank Diameter (d)1/4"
Overall Length (L)2 1/2"
Cutting Width (C)1 1/16"
Maximum Speed (RPM)35,000 RPM
StyleOverhang Trim
