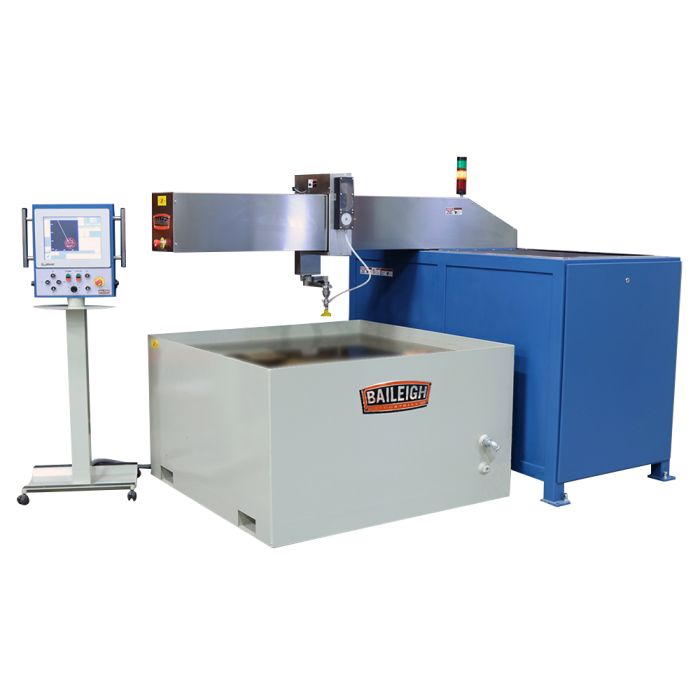

Baileigh Industrial 1019139 WJ-4X4 CNC Water Jet

SKU
BA9-1019139
$183,699.00
Ships direct from manufacturer ?

The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting. This great machine has the ability to cut just about any material with precision. The design is a cantilever design that allows for much easier material loading and unloading. This design also offers smoother action on the axis with exclusion of moving parts. All axis ride on precision balls screws with square slide ways. All slide ways are covered and protected from water for long life. The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy. Every WJ-4x4CNC includes our own proprietary abrasive auto feed system that is coupled with a powerful 55,000psi Hammelmann direct drive pump . This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting. To control the WJ-4x4CNC water jet Baileigh Industrial includes an easy to use windows based operator touchscreen. This programmer will support any DXF file.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
Includes
  • Glass
  • Granite
  • Ceramic
  • Plastic
  • Foam
  • Mild Steel
  • Stainless Steel
  • Titanium
  • Aluminum
  • Copper In Its 48” X 48” Table
Video

Motor Phase3 Ph
Stationary typeWater Jet
Motor KW30 kw
Working Table Size48" x 48"
Working Table Travel (X/Y)48"/48"
Table Size59" x 59"
Filter Type2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters2
Supported File FormatsDXF
Repeatability Accuracy± .001"
Production Pressure56,000 PSI
Maximum Flow Rate7.92 Gallons Per Minute
Orifice Size0.014"
Travel Speed40 FPM (26 FPM Cutting) Maximum
CNC SystemWindows Based
Cutting Accuracy±.001"
Inlet Pressure30 PSI
Motor40 Hp
X Axis Travel48"
Y Axis Travel48"
Z Axis Travel6.75"
Voltage460 V
Amperage60 Amps
Hopper Capacity250 lbs
SoftwareBobCAD Cam
