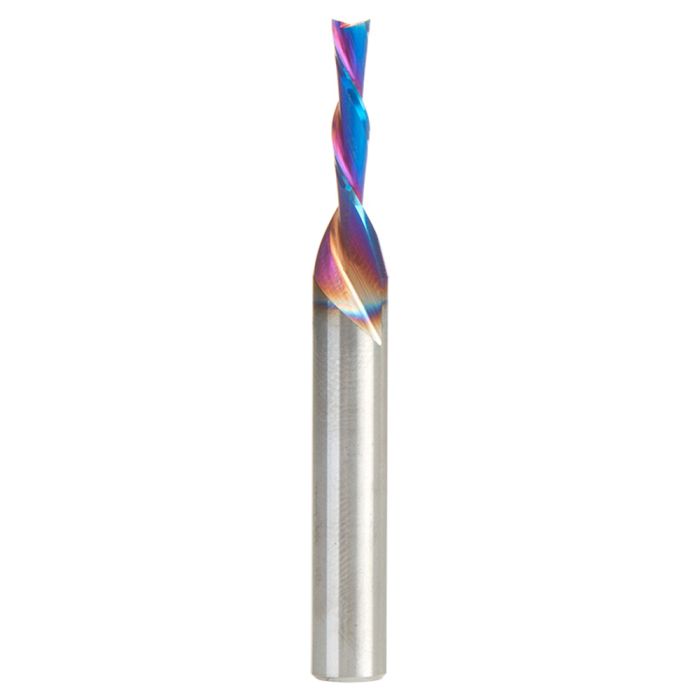

Amana Tool 48214-K 3mm Spektra Spiral Plunge Router Bit
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.
The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.
Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard plywood and laminate.
Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance.
Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00738685482148 |
| Features | With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:
|
| Application | Laminate, Melamine, Melamine Particle Board, MDF, Veneered Plywood, Wood |
| Flutes | 2 |
| Material | Solid Carbide |
| Type | Router Bit |
|---|---|
| Direction | Down-Cut |
| Diameter (D) | 3 mm |
| Cutting Height (B) | 12 mm |
| Shank Diameter (d) | 6 mm |
| Overall Length (L) | 50 mm |
| Style | Spiral Plunge |
| Suitable for Use with | CNC Machines and Other Automatic Routers Handheld and Table-Mounted Portable Routers |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (Wood/Plywood) | 70" / .0020" / 35" |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 105" / .0030" / 52.5" |
| Operating Spindle Speed (RPM) | 18,000 RPM |
