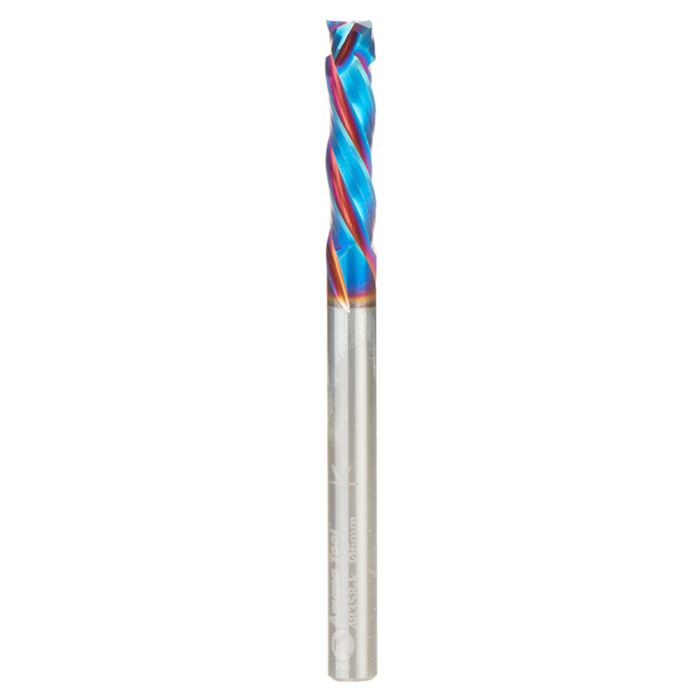

Amana Tool 48358-K 6mm Spektra CNC Mortise Compression Spiral Router Bit

SKU
48358-K
$102.92
Ships direct from manufacturer?

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising grooving and dado.

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685483589
Features

With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
ApplicationMDF/HDF, Laminate, Laminated Plywood, Melamine, Particle Board, Softwood/Hardwood, Veneered Plywood
Flutes3
MaterialSolid Carbide
TypeRouter Bit
Diameter (D) 6 mm
Cutting Height (B) 25 mm
Cutting Height (B1) 4.7 mm
Shank Diameter (d) 6 mm
Overall Length (L)75 mm
Flute TypeMortise Compression Spiral
Recommended Speed (RPM)20,000-21,000 RPM
Feed Rate IPM * / Chip Load Per Tooth / Ramp Down (Wood)165" / .0031" / 55"
Feed Rate IPM * / Chip Load Per Tooth / Ramp Down (MDF/Laminate)330" / .0061" / 110"
Feed Rate IPM * / Chip Load Per Tooth / Ramp Down (Plywood)165" / .0031" / 55"
Feed Rate IPM * / Chip Load Per Tooth / Ramp Down (Plastic)165" / .0031" / 55"
