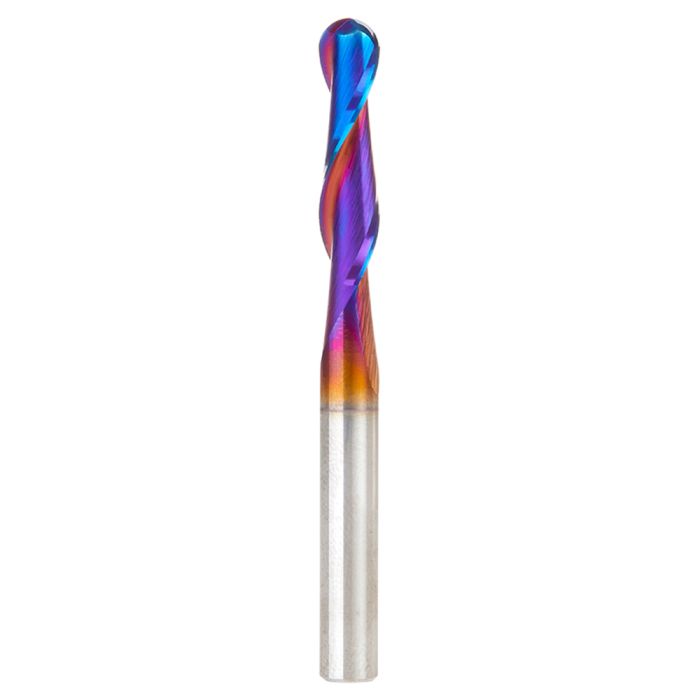

Amana Tool 48403-K 6mm Spektra Ball Nose Spiral Router Bit

SKU
48403-K
$65.70
Ships direct from manufacturer?

Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685484036
Features

With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
ApplicationSoft/Hard Wood, MDF, Soft/Hard Plastic, Sign Foam
Flutes2
MaterialSolid Carbide
TypeRouter Bit
DirectionUp-Cut
Diameter (D)6 mm
Radius (R)3 mm
Cutting Height (B)25 mm
Shank Diameter (d)6 mm
Overall Length (L)63 mm
CoatingnACo Ceramic
Flute TypeSpiral
StyleBall Nose
Feed Rate IPM * / Chip Load Per Tooth (Softwood)260" - 330" 0.007" - 0.009"
Feed Rate IPM * / Chip Load Per Tooth (Hardwood)190" - 260" 0.005" - 0.007"
Feed Rate IPM * / Chip Load Per Tooth (MDF)220" - 290" 0.006" - 0.008"
Feed Rate IPM * / Chip Load Per Tooth (Soft Plastic)150" - 220" 0.004" - 0.006"
Feed Rate IPM * / Chip Load Per Tooth (Hard Plastic)150" - 220" 0.004" - 0.006"
Feed Rate IPM * / Chip Load Per Tooth (Sign Foam)220" - 290" 0.006" - 0.008"
Operating Spindle Speed18,000 RPM
