In Stock

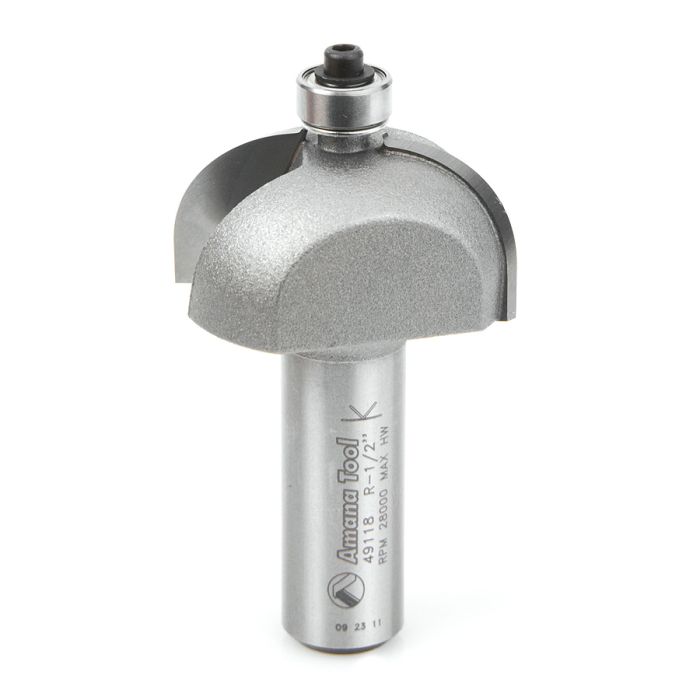

The covetto form – produced by the cove bit – is one of the classic building blocks for many molding profiles. Use it alone or in combination with beads and fillets. Use the cove to detail the edges of casework, doors and drawers, posts and columns. The cove also makes up one-half of the rule joint used on drop-leaf tables, the other half is the corner-round. For best results with a large radius cutter, make a preliminary cut with a smaller radius bit or chamfer the workpiece to reduce the amount of stock to be removed in the finish pass. This will produce a smoother finish and prolong tool life. The largest diameter bits must be run at reduced speed. Use in a handheld or table-mounted router.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868589118 |
| Includes | 47704 Bearing |
| PDFs | |
| Application | For Use the Cove to Detail the Edges of Casework, Doors and Drawers, Posts and Columns |
| Replacement Bearing | 47704 |
| Type | Cove |
| Ball Bearing | Lower |
| Cutter Height(B) | 3/4" |
| Cutting Diameter(D) | 1 3/8" |
| Diameter(D) | 1 3/8" |
| Flutes | 2 |
| Length(L) | 2 1/2" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/2" |
| Radius | 1/2" |
| Radius(R) | 1/2" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 49118 |
| Suitable for Use With | Handheld and Table Mounted Routers |
| Diameter(D) | 1 3/8" |
|---|---|
| Radius(R) | 1/2" |
| Cutter Height(B) | 3/4" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2 1/2" |
| Replacement Bearing | 47704 |
| Flutes | 2 |
| Max. RPM | 28,000 RPM |
