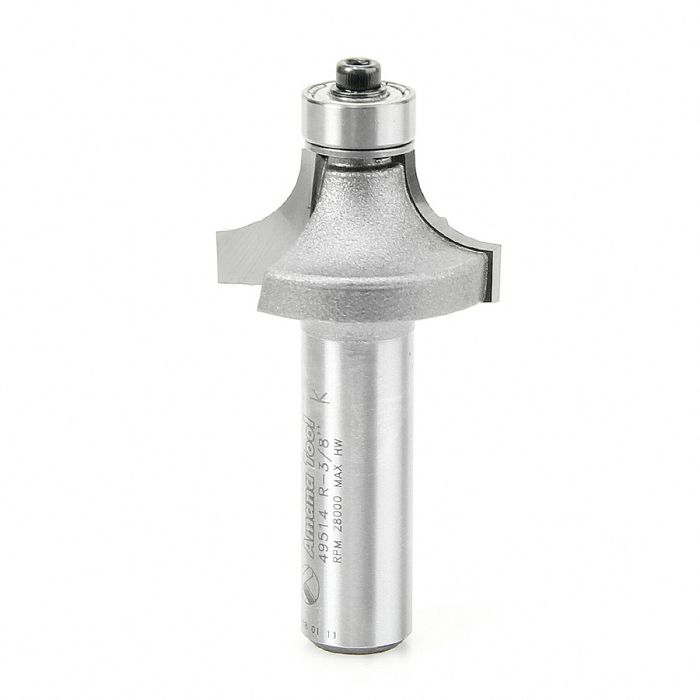

Amana Tool 49514 1-1/4" Carbide Tipped Corner Round Router Bit
SKU
49514
$40.25
In Stock
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868589514 |
| Includes | 47706 Bearing |
| PDFs | |
| Replacement Bearing | 47706 |
| Type | Corner Rounding |
| Ball Bearing | Lower |
| Cut Height(B) | 5/8" |
| Cutting Diameter(D) | 1/2 x 1 1/4" |
| Diameter(D) | 1 1/4" |
| Flutes | 2 |
| Length(L) | 2 9/16" |
| Material | Carbide Tip |
| Overall Length(L) | 2 9/16" |
| Radius | 3/8" |
| Radius(R) | 3/8" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 49514 |
| Diameter(D) | 1 1/4" |
|---|---|
| Radius(R) | 3/8" |
| Cutter Height(B) | 5/8" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2 9/16" |
| Replacement Bearing | 47706 |
| Flutes | 2 |
| Diameter(D1) | 1/2" |
| Max. RPM | 28,000 RPM |
