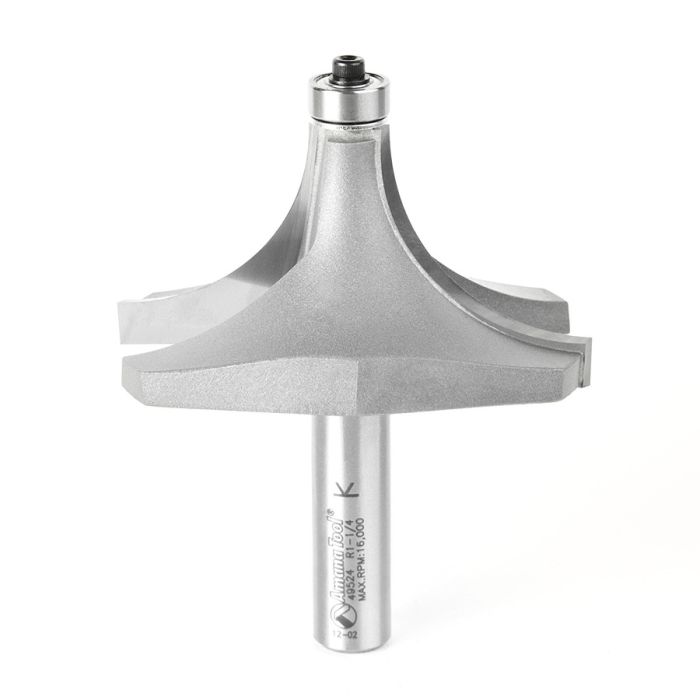

Amana Tool 49524 3" Carbide Tipped Corner Round Router Bit
SKU
49524
$172.98
In Stock
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. Maximum RPM 16,000. Use in a table-mounted router. Not for use in a handheld router! Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868589524 |
| Includes | 47706 Bearing |
| PDFs | |
| Replacement Bearing | 47706 |
| Type | Corner Rounding |
| Ball Bearing | Lower |
| Cut Height(B) | 1 1/2" |
| Cutting Diameter(D) | 1/2 x 3" |
| Diameter(D) | 3" |
| Flutes | 2 |
| Length(L) | 3 1/4" |
| Material | Carbide Tip |
| Radius | 1 1/4" |
| Radius(R) | 1 1/4" |
| RPM | 16,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 49524 |
| Diameter(D) | 3" |
|---|---|
| Radius(R) | 1 1/4" |
| Cutter Height(B) | 1 1/2" |
| Shank(d) | 1/2" |
| Overall Length(L) | 3 7/8" |
| Replacement Bearing | 47706 |
| Flutes | 2 |
| Diameter(D1) | 1/2" |
| Max. RPM | 16,000 RPM |
