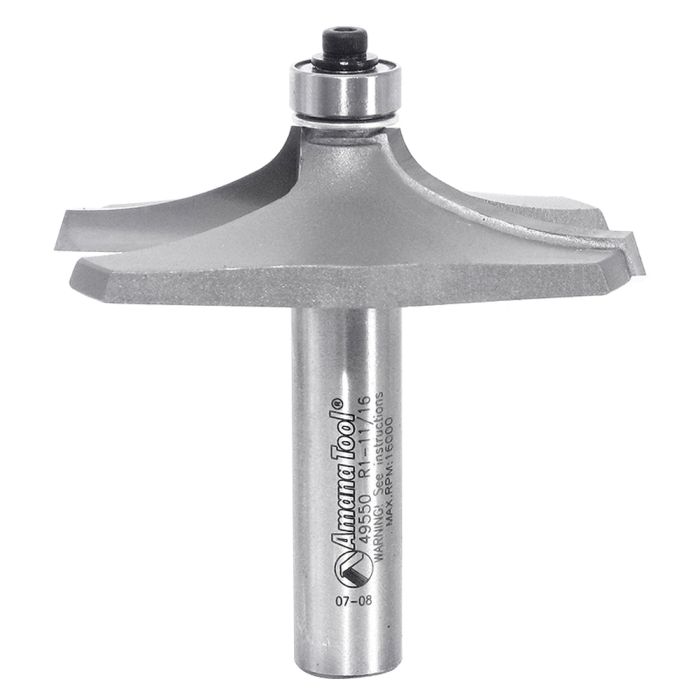

Amana Tool 49550 2-3/4" Carbide Tipped Table Edge Router Bit

SKU
49550
$120.65
In Stock
Cuts a shallow ogee into the tabletop surface coupled with a bead at the edge. Bit will produce a fillet if set to cut deep enough. With the optional 3/8 inch bearing, it will produce a fillet at the cut's edge. Good choice for handrails. These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868589550
Replacement Bearing47706
TypeRouter Bit
Ball BearingLower
Cutter Height(B)5/8"
Diameter(D)2 3/4"
Flutes2
MaterialCarbide Tip
Overall Length(L)2 1/2"
Radius(R)1 3/4"
Shank(d)1/2"
Tool No.49550
Diameter(D)2-3/4"
Cutting Height (B)5/8"
Overall Length(L)2-7/8"
Shank(d)1/2"
Flutes2
Radius(R)1-3/4"
Replacement Bearing47706
Max. RPM16,000 RPM
StyleTable Edge
Radius(R1)11/16"
