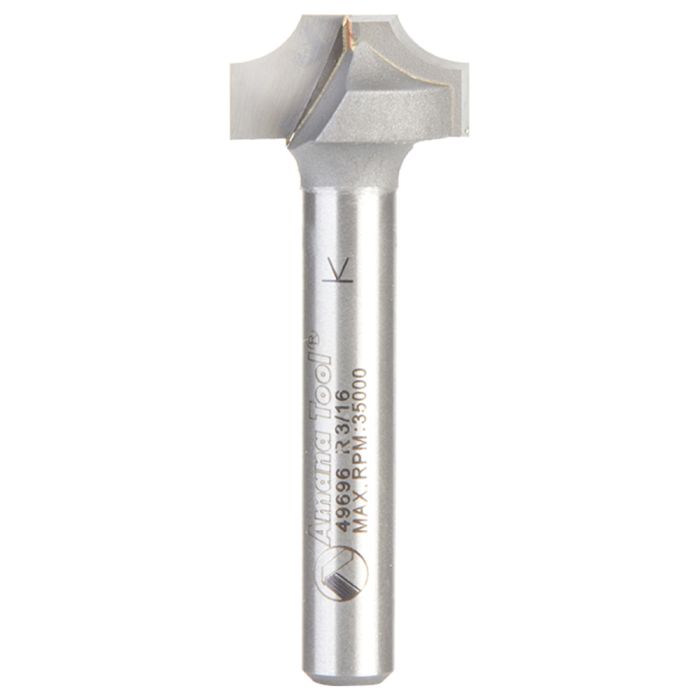

Amana Tool 49696 3/16"RAD x 1/4"SHK Plunging Round Over Router Bit

SKU
49696
$44.47
Ships direct from manufacturer?
This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685994962
B11/8"
Cutter Height(B)5/16"
Diameter(D)5/8"
Diameter(D1)1/4"
Flutes2
MaterialCarbide Tip
Overall Length(L)1 3/4"
Radius(R)3/16"
Shank(d)1/4"
Type Router Bit
Max RPM 35,000 RPM
Style Plunging Round Over
