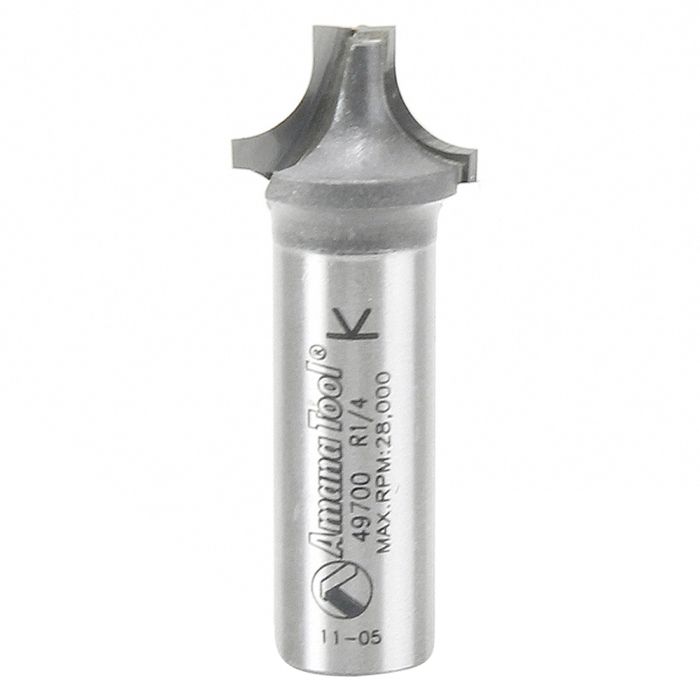

Amana Tool 49700 3/4" Carbide Tipped Plunging Round Over Router Bit
SKU
49700
$65.53
In Stock
This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868589700 |
| Type | Router Bit |
| B1 | 3/8" |
| Ball Bearing | No |
| Cutter Height(B) | 1/2" |
| Diameter(D) | 3/4" |
| Diameter(D1) | 0.24" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 2" |
| Radius | 1/4" |
| Shank(d) | 1/2" |
| Tool No. | 49700 |
| Diameter(D) | 3/4" |
|---|---|
| Cutting Height (B) | 1/2" |
| Overall Length(L) | 2" |
| Shank(d) | 1/2" |
| Flutes | 2 |
| Radius(R) | 1/4" |
| Diameter(D1) | 1/4" |
| Max. RPM | 28,000 RPM |
| Style | Plunging Round Over |
| Cutting Height (B1) | 3/8" |
| Cutting Height (B2) | 7/64" |
