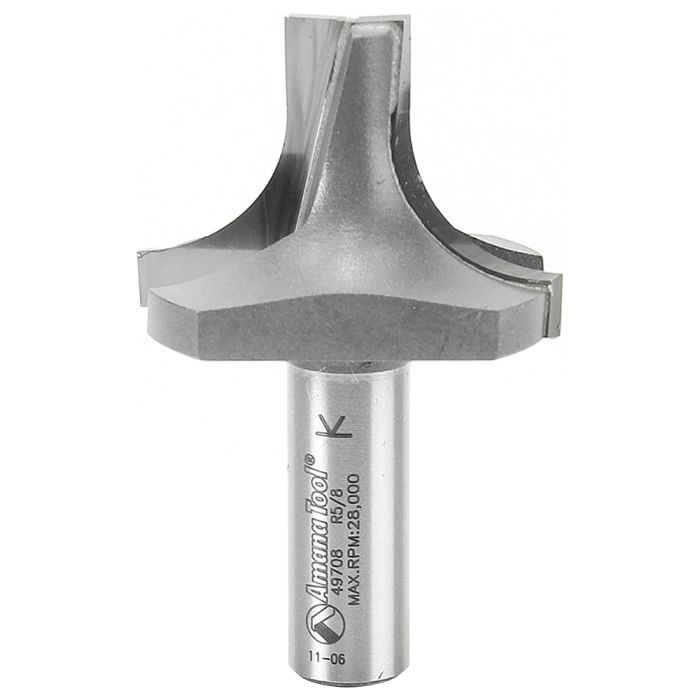

Amana Tool 49708 1-3/4" Carbide Tipped Plunging Round Over Router Bit
SKU
49708
$103.50
Ships direct from manufacturer ?
This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868589708 |
| Features |
|
| Type | Router Bit |
| B1 | 1" |
| Ball Bearing | No |
| Cutter Height(B) | 1 1/4" |
| Cutting Diameter(D) | 1 3/4" |
| Diameter(D) | 1 3/4" |
| Diameter(D1) | 1/2" |
| Flutes | 2 |
| Length(L) | 2 3/4" |
| Material | Carbide Tip |
| Overall Length(L) | 2 3/4" |
| Radius | 5/8" |
| Shank(d) | 1/2" |
| Tool No. | 49708 |
| Diameter(D) | 1-3/4" |
|---|---|
| Cutter Height(B) | 1-1/4" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-3/4" |
| Flutes | 2 |
| Diameter(D1) | 1/2" |
| Cutter Height(B1) | 1" |
| Cutter Height(B2) | 3/8" |
| Radius(R) | 5/8" |
| Style | Plunging Round Over |
| Max. RPM | 28,000 RPM |
