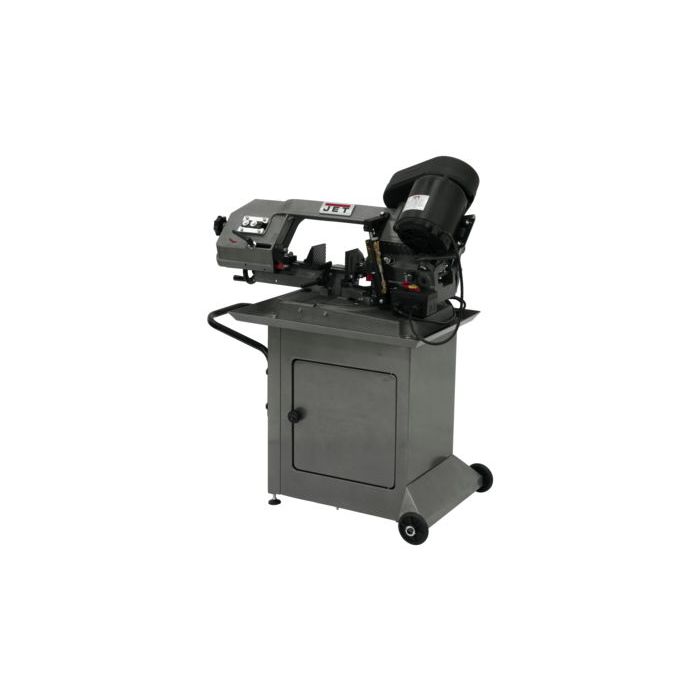

JET 414457 HBS-56S 5" x 6" Horizontal Swivel Head Bandsaw, 1/2 HP 115/230V 1 Ph

SKU
414457
$1,279.00
Ships direct from manufacturer?
Usually ships in 24-48 hours

The Jet 414457 HBS-56S is a 5 X 6 Swivel-head Band Saw with Hydraulic Downfeeder. The quick-positioning vise lessens set-up time and has a large handwheel and built-in gauge for easy blade tensioning. it has an unique design which features a swivel-head for miter cutting structurals, pipe and tubing.

Bandsaw, Horizontal Swivel Head, Jet, 18 Inch Length, 17 1/2 Inch Width, 41 Inch Height, 64 1/2 Inch Length X 1/2 Inch Width X 0.025 Inch Thick Blade, 80, 120, 200 SFPM Speed, 1/2 HP, 115/230 V, 1 Ph, Prewired 115V Motor, 1 3/4 Inch Round, 5 X 1 3/4 Inch Rectangle Cutting Capacity at 60 Degrees, 28 Inch Bed Height, 37 X 20 3/4 X 41 Inch Base/3 Legs Area Required, 5 Inch Throat Depth, 7 3/8 Inch Blade Wheel Diameter, 172 lb

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Jet
Condition New
UPC 66275552304
Features
  • Head swivels for a maximum cut at 45 & 60 Degrees
  • Hydraulic down feed control
  • Deluxe enclosed stand with handle and wheels for easy movement
  • Ball bearing drive wheel and blade guides
  • Sealed worm gear transmission
  • UL Listed motor
  • Standard Equipment: 1/2" Carbon steel blade
  • Adjustable material stop
Horsepower 0.5 HP
Stationary type Horizontal
Warranty

2 Year Warranty

Base/ 3 Legs Area Required (in.)37 x 20-3/4 x 41
Bed Height (in.)28
Blade Length (in.)64-1/2
Blade Size (in.)1/2 x .025 x 64-1/2
Blade Speeds (SFPM)80, 120, 200
Height41 inch
Length18 inch
Model NumberHBS-56S
Motor1/2HP UL Listed 115/230V 1Ph Prewired 115V
Net Weight172 pound
Overall Dimensions42" x 18" x 44"
Part Number414457
Rectangle at 45 (in.)4 x 2-3/4; 2 x 3-3/4
Rectangle at 60 Degrees (in.)5 x 1-3/4
Rectangle at 90 Degrees (in.)5 x 6; 2 x 6-3/4
Round at 45 Degrees (in.)3
Round at 60 Degrees (in.)1-3/4
Round at 90 Degrees (in.)5
Throat Depth (in.)5
Width17.5 inch
