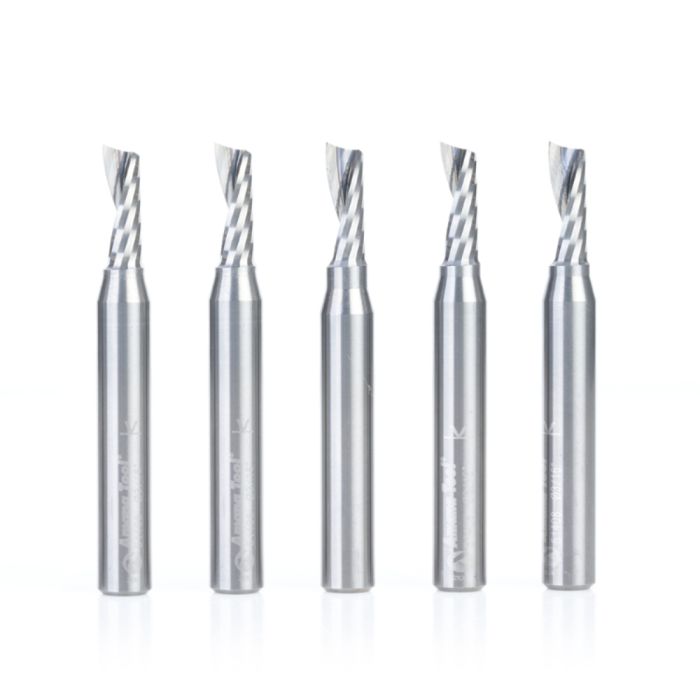

Amana Tool 51408-5 3/16" Solid Carbide CNC Spiral 'O' Flute Up-Cut Router Bit, 5 Piece

SKU
51408-5
$207.11
Ships direct from manufacturer?

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut. Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.

*Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

Warning: Never attempt to cut ferrous metals with these bits. Inspect cut quality adjust feed / speed accordingly.

For optimal results and extended tool life use mist lubricant system or air cooling.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Amana Tool Corp.
Condition New
Features

Benefits of Mirror-Finish:

  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and prevents melting
Flutes 1
Material Solid Carbide
Package Size 5
TypeRouter Bit
Diameter (D)3/16"
Cutting Height (B)1/2"
Shank Diameter (d)1/4"
Overall Length (L)2"
Flute TypeSpiral 'O'
DirectionUp Cut
Maximum Speed (RPM)35,000 RPM
IPM at 18,000 RPM / Spindle Speed SFM / Chip Load Per Tooth55" - 110" / 600 - 1,000 / 0.003" - 0.006"
Suitable for Use withCNC Machines and Routers with Automatic Feeding
ApplicationFor Cutting ALPOLIC Copper Composite, Material (CCM), Alucobond, Aluminum, Aluminum 5052, Aluminum 6061, Aluminum Alloys, Aluminum Composite, Materials (ACM), Aluminum Composite Panel (ACP)*, Alupanel, Brass, Copper, Dibond, Durabond**, e-panel, Etalbond, Fomex with Aluminum Face, Gold, Non-Ferrous Metals, Plastic, Silver, Solid Surface, Titanium Composite Material (TCM), Wood
