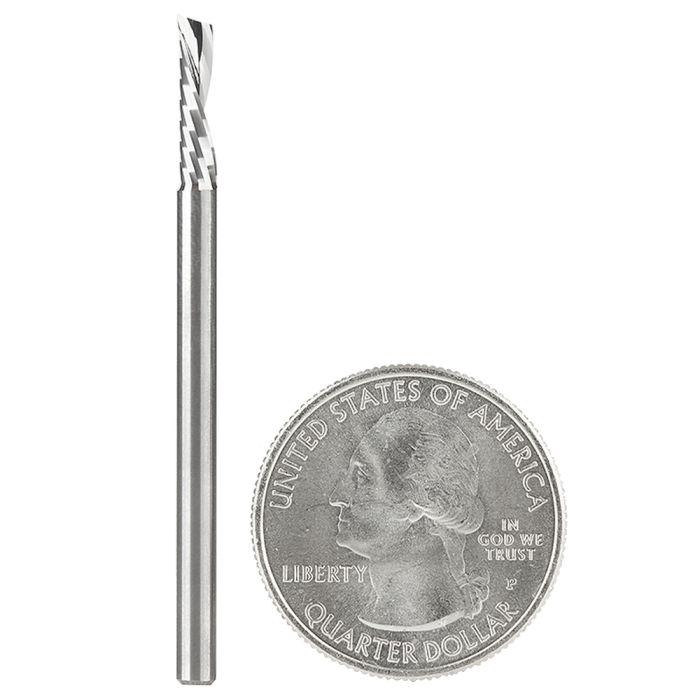

Amana Tool 51510 1/8" Solid Carbide CNC Down-Cut Spiral 'O' Flute Plastic Cutting Router Bit
SKU
51510
$40.79
Ships direct from manufacturer ?
To be used only on CNC machines and routers with automatic feeding. Produce super clean, smooth cuts especially in acrylic materials (Plexiglas Lucite) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips down. Ideal for industrial applications and CNC machines. Left hand helix left hand cut.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868505151 |
| Features |
|
| PDFs | |
| Application | Plastic/Acrylic, Acetal and Nylon, Acrylic Stone, Acrylonitrile Butadiene Styrene (ABS), Aluminum Composite Material (ACM), Alupanel, Corian, Coroplast, Corrugated Plastics such as Correx Boards and Polypropylene, Crosslinked Polyethylene (XPE, PEX, XLPE) |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 1/2" |
| Cutting Diameter(D) | 1/8" |
| Diameter(D) | 1/8" |
| Flutes | 1 |
| Length(L) | 2" |
| Material | Solid Carbide |
| Overall Length(L) | 2" |
| RPM | 35,000 RPM |
| Shank | 1/8" |
| Shank(d) | 1/8" |
| Tool No. | 51510 |
| Suitable for Use With | CNC Machines and Routers |
| Diameter(D) | 1/8" |
|---|---|
| Cutter Height(B) | 1/2" |
| Shank(d) | 1/8" |
| Overall Length(L) | 2" |
| Flutes | 1 |
| Direction | Down-Cut |
| Max. RPM | 35,000 RPM |
