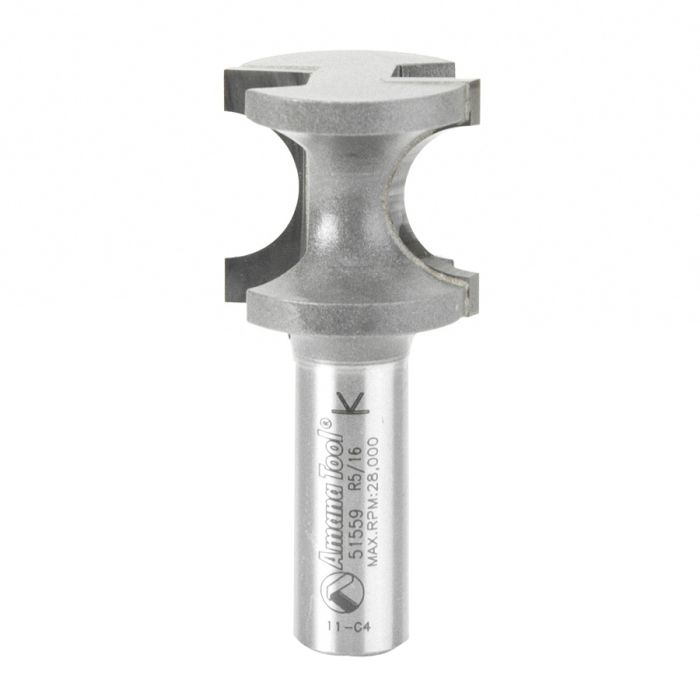

Amana Tool 51559 1-1/8" Carbide Tipped Bullnose Router Bit
SKU
51559
$86.49
Ships direct from manufacturer?
Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The "nose diameter" (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868515559 |
| PDFs | |
| Application | For Shaping Stair Treads, Window Sills, Table and Counter Edges, Shelves and Making Moldings |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 11 mm |
| Cutting Diameter(D) | 5/8" |
| Diameter(D) | 1 1/8" |
| Flutes | 2 |
| Length(L) | 2 1/2" |
| m | 5/8" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/2" |
| Radius | 5/16" |
| Radius(R) | 5/16" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 51559 |
| Suitable for Use With | Handheld and Table Mounted Routers |
| Diameter(D) | 1-1/8" |
|---|---|
| Cutter Height(B) | 1" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-1/2" |
| Flutes | 2 |
| Radius(R) | 5/16" |
| Max. RPM | 28,000 RPM |
