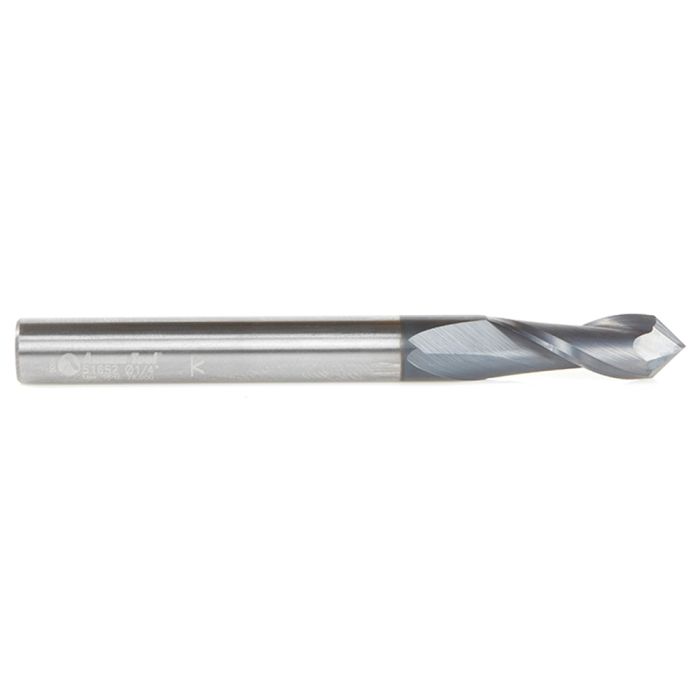

Amana Tool 51652 1/4"D 2FL SC 90 Deg 'V' Spiral Drill/Mill AlTiN Coating Router Bit

SKU
51652
$40.57
Ships direct from manufacturer?

A true multi-function tool, combination drill/mills allow plunging, slotting and/or top chamfering all in one tool saving you the cost of extra tools plus indexing time.

Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Cermets are composites in which ceramic materials and metals join together.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.

Warning: These router bits/end mills are not designed for drilling steel, stainless steel, titanium and cermets. Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685516522
Features
  • AlTiN coating has many benefits:
  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life
ApplicationDrilling, Grooving, Milling, Chamfering, Shallow Spotting, Excellent for Cutting: Stainless Steel, Steel, Cast Iron, Titanium, Soft Plastics, Composites, Cermet*, Metal Composite Material (MCM)
Angle(a°)90 Deg
Cutter Height(B)1/8"
Cutter Height(B1)3/4"
Diameter(D)1/4"
Flutes2
MaterialSolid Carbide
Max. RPM28,000 RPM
Overall Length(L)2 1/2"
Shank(d)1/4"
TypeRouter Bit
Flute TypeSpiral
Point TypeV
CoatingAlTiN
