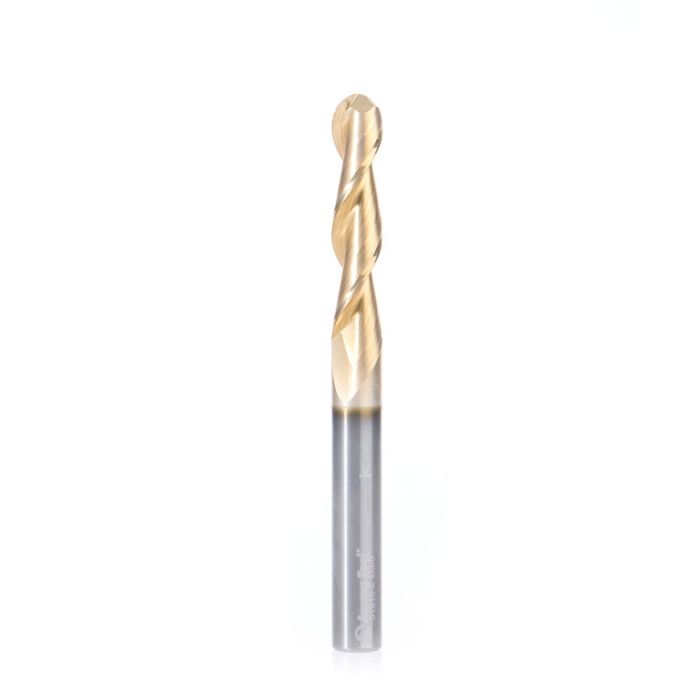

Amana Tool 51915-Z, 3/8" 2FL SC ZrN Ball Nose Up-Cut Router Bit
To be used only on CNC machines and routers with automatic feeding.
Ball nose CNC router bits for generating 3D shapes, slopes, curves and rounded slots in aluminum using a CNC router.
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system and feature clean cuts with a longer tool life.
Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive. *Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.
Warning: Never attempt to cut ferrous metals with these bits.
Inspect cut quality adjust feed / speed accordingly.
For optimal results and extended tool life use mist lubricant system or air cooling.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00073868551915 |
| Features |
|
| Ball Nose | Yes |
| Diameter(D) | 3/8" |
| Flutes | 2 |
| Material | Solid Carbide |
| Max. RPM | 35,000 RPM |
| Overall Length(L) | 4" |
| Radius(R) | 3/16" |
| Shank(d) | 3/8" |
| Type | Router Bit |
|---|---|
| Helix Direction | Up-Cut |
| Cutting Height (B) | 1-3/4" |
| Style | Spiral 'O' |
| Coating | ZrN |
| Application | ALPOLIC Copper Composite, Material (CCM), Alucobond, Aluminum, Aluminum 5052, Aluminum 6061, Aluminum Alloys, Aluminum Composite, Materials (ACM), Aluminum Composite Panel (ACP)*, Alupanel, Brass, Copper, Dibond, Durabond**, e-panel, Etalbond, Fomex with Aluminum Face, Gold, Non-Ferrous Metals, Plastic, Silver, Solid Surface, Titanium Composite Material (TCM), Wood |
