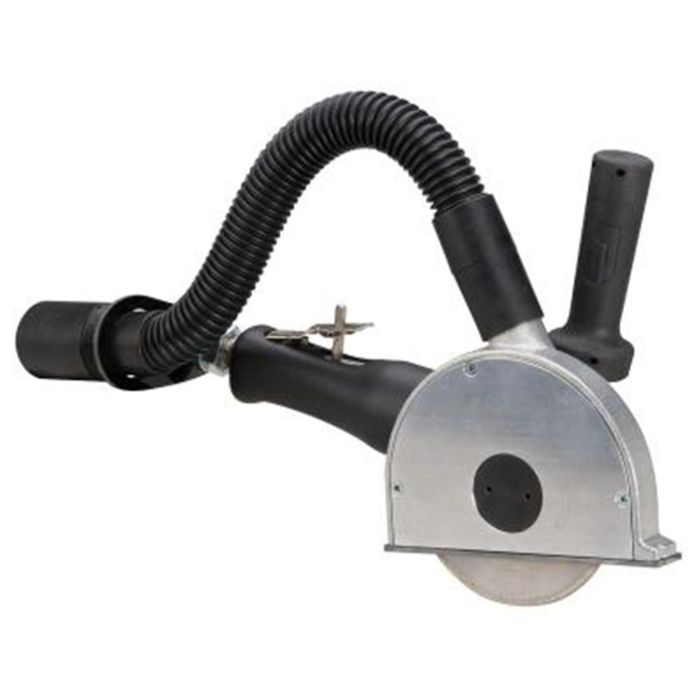

Dynabrade 52615 5" Right Angle Vacuum Cut-Off Wheel Tool

SKU
52615
$1,146.65
Ships direct from manufacturer ?
Tool accepts optional 5" (127 mm) dia. diamond cut-off wheels with 3/4" (19 mm) dia. center hole. Adjustable wheel guard has vacuum port 1-1/4" (32 mm) outside diameter that diverts airborne dust and debris to optional vacuum source. Non-marring composite base is removable to utilize maximum blade depth of 1-3/16" (30 mm). Optional composite base is available for scoring. Shroud/Guide plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece. Wick lube system extends gear life with simple lubrication. Exhaust system rotates 360 degrees to ensure exhaust is always directed away from operator. Sound level is the pressure measurement according to the method outlined in ISO regulation ISO-15744.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026526150
Includes
  • Safety-Lock Throttle Lever
  • 95848 Gear Oil and 95541 Gear Oil Gun
PDFs

Summary Sheet

ApplicationFor Efficient Cutting with Capture of Dust and Debris, Fiberglass and Composites
Diameter5"
Horsepower1.3 HP
Speed (RPM)12,000 RPM
TypeCut-Off Wheel Tool
Maximum Air Flow Rate (SCFM)42 SCFM
Spindle Thread Size 3/8" - 24
Spindle Thread TypeMale
Sound Level84 dB(A)
Air Inlet Thread Size 3/8"
Air Inlet Thread TypeNPT
Exhaust TypeRotational
Hose Inner Diameter3/8"
Arbor Size3/4"
Vacuum TypeVacuum
Motor TypeRotary Vane
Tool StyleRight Angle
Suitable for Use with5" Diameter Diamond Cut-Off Wheels
Width10"
Length14.8"
Height9.2"
CE CertifiedYes
EAC CertifiedYes
Weight7.2 lbs
