Amana Tool 53600 1-7/8" Quadraset Router Bit

SKU
53600
$143.94
Ships direct from manufacturer ?

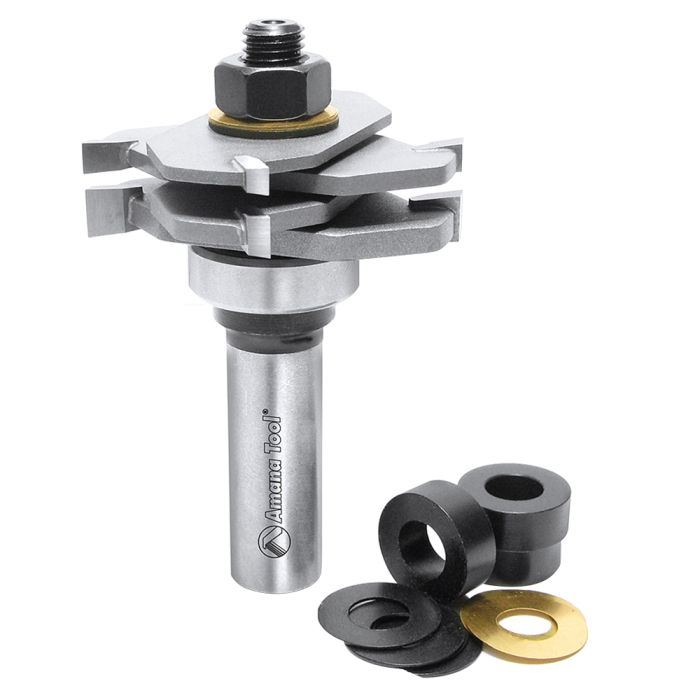

The Quadraset is an adjustable slotting assembly that includes 1/8", 5/32", 3/16" and 1/4" two-wing cutters, a 1/2" shank arbor with a pilot bearing, and a handful of spacers, washers and shims. Conceptually it is like a table-saw dado stack set. You can use the cutters individually on the arbor, or you can combine two, three or all of the cutters on the arbor. Thus you can cut slots that range in widths from 1/8" up to 23/32" in 1/32" increments. For different depth of cut, see Vari-Depth bearings. A full 3/4" cut can be achieved using one additional #53107 cutter (available separately).

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868593600
TypeRouter Bit
Diameter (D) 1 7/8"
Shank (d) 1/2"
Cutting Height (B) 1/8" - 23/32"
Overall Length (L) 3"
Diameter (d1) 5/16"
Cutter Width (C) 1/2"
Style Quadraset
Number of Wings 2
Suitable for Use with Table-Mounted Router
