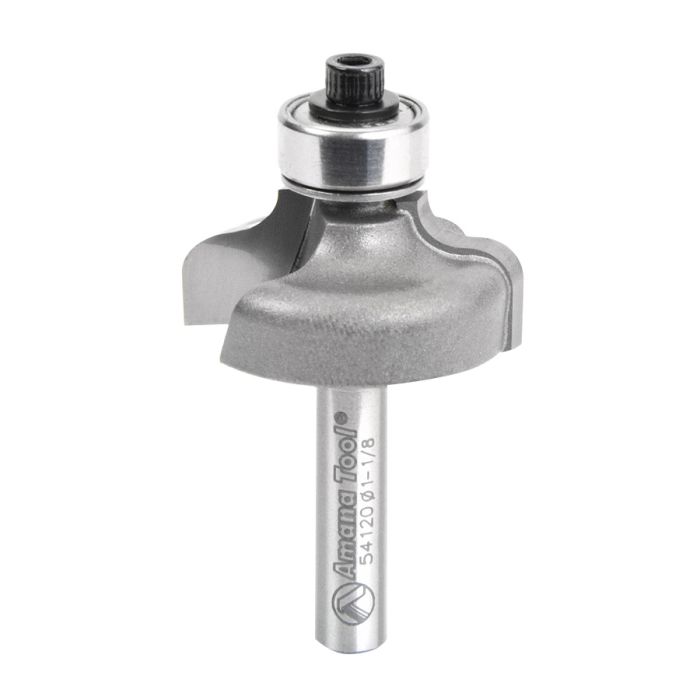

Amana Tool 54120 1-1/8" x 2" Carbide Tipped Ogee Router Bit
SKU
54120
$61.30
Ships direct from manufacturer ?
The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8 inch bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868594120 |
| PDFs | |
| Application | For Used in Moldings and Decorative Profiles |
| Replacement Bearing | 47706 |
| Type | Router Bit |
| Ball Bearing | Lower |
| Cutter Height(B) | 1/2" |
| Cutting Diameter(D) | 1 1/8" |
| Diameter(D) | 1 1/8" |
| Flutes | 2 |
| Length(L) | 2" |
| Material | Carbide Tip |
| Overall Length(L) | 2" |
| Radius | 5/32" |
| Radius(R) | 5/32" |
| Radius(R1) | 5/32" |
| Shank | 1/4" |
| Shank(d) | 1/4" |
| Tool No. | 54120 |
| Suitable for Use With | Handheld and Table Mounted Routers |
| Diameter(D) | 1-1/8" |
|---|---|
| Cutter Height(B) | 1/2" |
| Shank(d) | 1/4" |
| Overall Length(L) | 2" |
| Flutes | 2 |
| Radius(R) | 5/32" |
| Replacement Bearing | 47706 |
| Radius(R1) | 5/32" |
