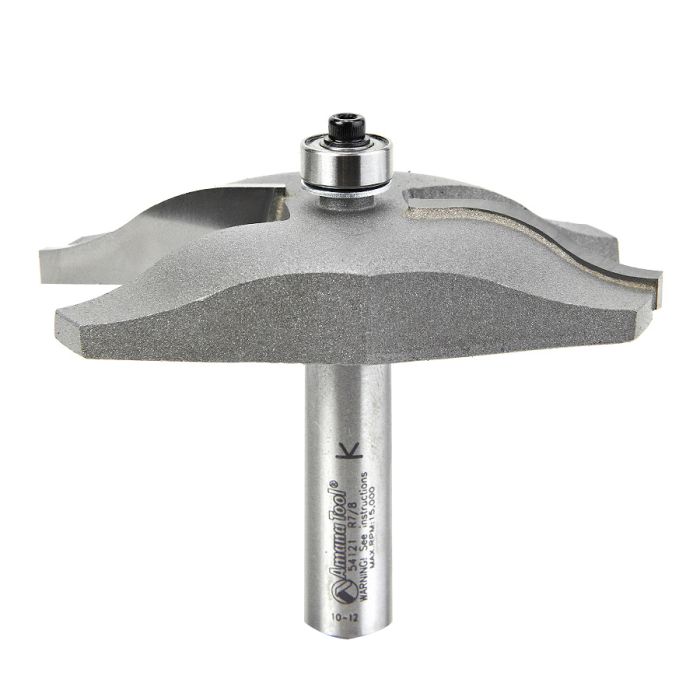

Amana Tool 54121 3-3/8" x 2-1/2" Carbide Tipped Ogee Raised Panel Router Bit
SKU
54121
$167.84
In Stock
Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2 inch shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868594121 |
| Includes | 47706 Bearing |
| PDFs | |
| Application | For Cabinet Doors, Frame and Panel Furniture and Architectural Paneling |
| Replacement Bearing | 47706 |
| Type | Router Bit |
| A | 1 7/16" |
| Ball Bearing | Lower |
| Cutter Height(B) | 9/16" |
| Cutter Height(B1) | 3/8" |
| Cutting Diameter(D) | 3 3/8" |
| Flutes | 2 |
| Length(L) | 2 1/2" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/2" |
| Radius | 7/8" |
| Radius(R) | 7/8" |
| RPM | 14,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 54121 |
| Suitable for Use With | Table Mounted Router |
| Diameter(D) | 3-3/8" |
|---|---|
| Cutter Height(B) | 9/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-1/2" |
| Flutes | 2 |
| Radius(R) | 7/8" |
| Cut Depth (A) | 1-7/16" |
| Replacement Bearing | 47706 |
| Cutter Height(B1) | 3/8" |
| Max. RPM | 15,000 RPM |
