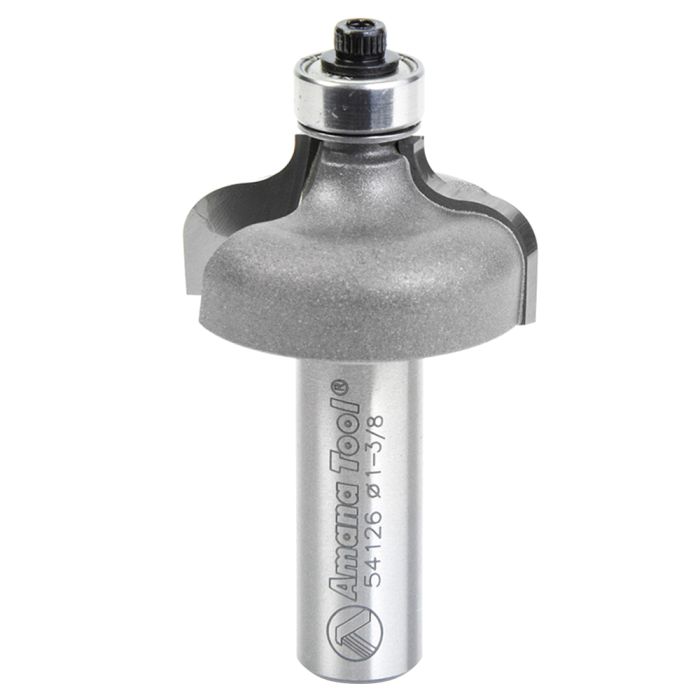

Amana Tool 54126 1-3/8" Carbide Tipped Ogee Router Bit
SKU
54126
$57.71
In Stock
The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8 inch bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868594126 |
| Features |
|
| Replacement Bearing | 47706 |
| Type | Router Bit |
| Ball Bearing | Lower |
| Cutter Height(B) | 11/16" |
| Diameter(D) | 1 3/8" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 2 9/16" |
| Radius | 1/4" |
| Radius(R) | 1/4" |
| Radius(R1) | 3/16" |
| Shank(d) | 1/2" |
| Tool No. | 54126 |
| Diameter(D) | 1-3/8" |
|---|---|
| Cutter Height(B) | 11/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-5/8" |
| Flutes | 2 |
| Radius(R) | 1/4" |
| Radius(R1) | 3/16" |
| Replacement Bearing | 47706 |
| Style | Ogee |
