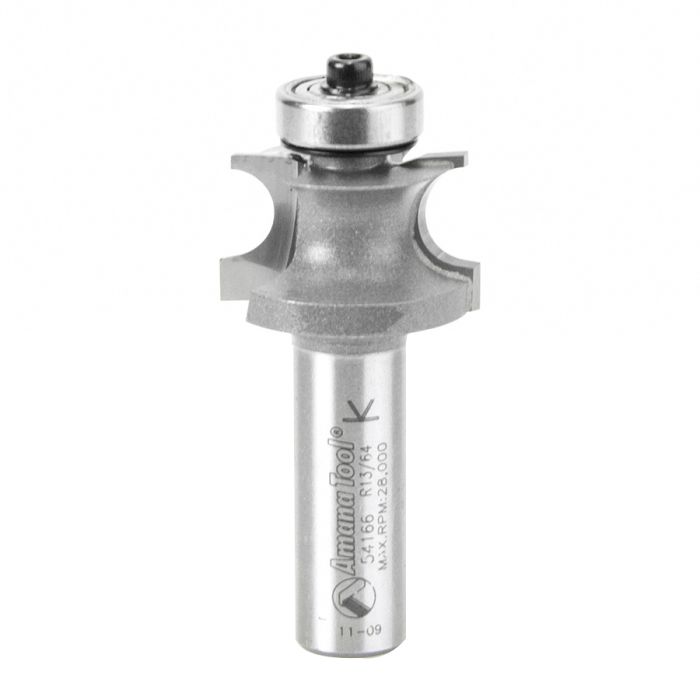

Amana Tool 54166 1-1/8" Carbide Tipped Corner Round Router Bit
SKU
54166
$52.82
Ships direct from manufacturer?
Produce three slightly different profiles using this bit - an edge bead with or without a fillet and a full corner bead - by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868594166 |
| Includes | 47716 Bearing |
| PDFs | |
| Application | For Antique Reproductions and Restoration Projects |
| Replacement Bearing | 47716 |
| Type | Router Bit |
| B | 11/16" |
| B1 | 3/8" |
| Ball Bearing | Lower |
| Cutting Diameter(D) | 1 x 1 1/8" |
| Diameter(D) | 1 1/8" |
| Diameter(D1) | 1" |
| Flutes | 2 |
| Length(L) | 2 5/8" |
| Material | Carbide Tip |
| Overall Length(L) | 2 5/8" |
| Radius | 3/16" |
| Radius(R) | 3/16" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 54166 |
| Suitable for Use With | Handheld and Table Mounted Routers |
| Diameter(D) | 1-1/8" |
|---|---|
| Cutter Height(B) | 11/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-5/8" |
| Flutes | 2 |
| Cutter Height(B1) | 13/32" |
| Radius(R) | 3/16" |
| Replacement Bearing | 47716 |
| Diameter(D1) | 1" |
| Max. RPM | 28,000 RPM |
