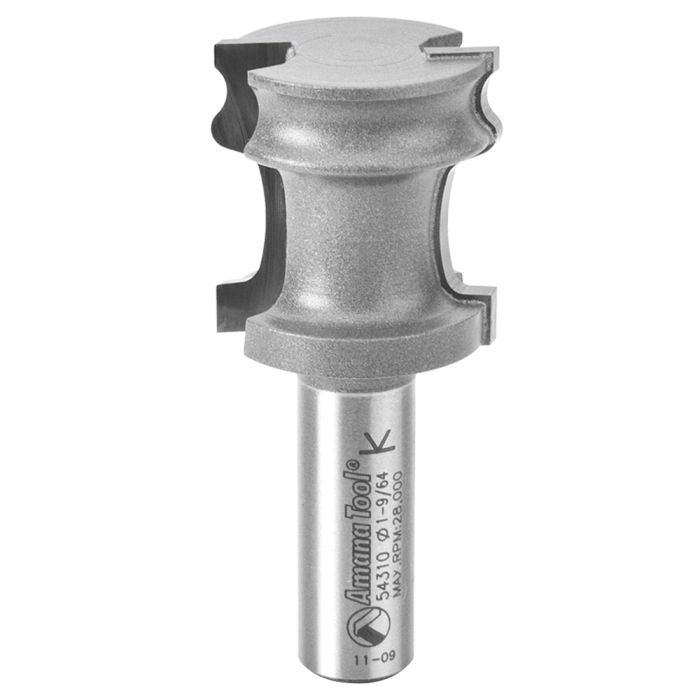

Amana Tool 54310 1-3/16" Carbide Tipped #1 Tambour Router Bit

SKU
54310
$129.00
Ships direct from manufacturer?

The set is easy to set up and use. The first bit (#54310) shapes the face of the stock; cutting from each face completes the contour of the ball. Afterwards, a second bit (#54312) is used to shape the socket. A third bit in the set (#49498) is used to shape the end of the tambour which provides a place to mount a pull for opening the completed tambour.

And, assembly is easy. Simply slide the slats together to create a beautiful flexible tambour that's perfect for creating our own roll top desk, breadbox, kitchen countertop storage areas and more.

Recommended Maximum Width for Tambour Strips:
Do not exceed 5ft or 60in in length, otherwise they may sag under their own weight.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868554310
Features
  • Unique 3-piece router bit set with antique solid brass knob
  • Shapes tambours that interlock with a ball-and-socket joint
  • Unlike ordinary tambours, there is no need for cloth, glue or wires
  • Each slat measures approximately 1/2" x 1"
  • Minimum radius for the tambour door is 3-1/2"
  • Part of Set #54314 (U.S. Patent No. 7 810 532)
MaterialCarbide Tip
Type Router Bit
Diameter (D) 1 3/16"
Radius (R) 1/8"
Cutting Height (B) 1 1/4"
Shank Diameter (d) 1/2"
Overall Length (L) 2 3/4"
Radius (R1) 5/64"
Maximum Speed (RPM) 28,000 RPM
