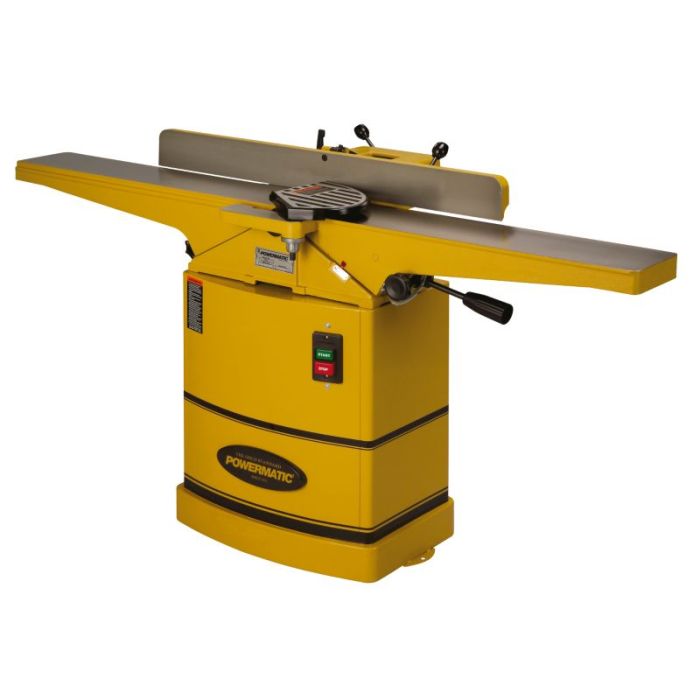

Powermatic 1791317K 115/230V 6" Jointer, 1HP/1Ph

SKU
PM9-1791317K
$2,364.00
Ships direct from manufacturer ?
This 6 inch Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38 inch in length, with positive stops at 90 degree and 45 degree right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4 inch dust port offers easy connection to any dust collection system.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275595597
Features
  • Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
  • 66 inch long adjustable infeed and outfeed tables provide more working surface
  • Fine/quick adjustment lever on infeed table for precision cuts
  • Extra-long 38 inch two-way tilting fence with positive stops provides quick positioning for 90 degree or bevel cuts
  • Enlarged sheet metal stand provides a sturdy base
  • Fence controls are center-mounted for convenience
  • Push button switch is lockable to prevent accidental starting
PDFs
Horsepower1 HP
Motor Phase1 Ph
Warranty

5 Year

Motor Current13/6.5 Amps
Motor Voltage115/230 V
Prewired Voltage115 V
Recommended Circuit Size20/10 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)450 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward Deg
Fence Size Length38"
Fence Size Height4 3/4"
Outfeed Table Length35 1/2"
Infeed Table Length35 1/2"
Table Height from Floor31 1/2"
Table Size Length66"
Table Size Width7 1/4"
Cutting Capacity Width6"
Cutting Capacity Depth1/2"
Cutterhead Speed (RPM)6,000 RPM
Cutterhead Diameter2 1/2"
Number of Knives40 Four-Sided Carbide Helical Inserts
Type of CutterheadHelical
