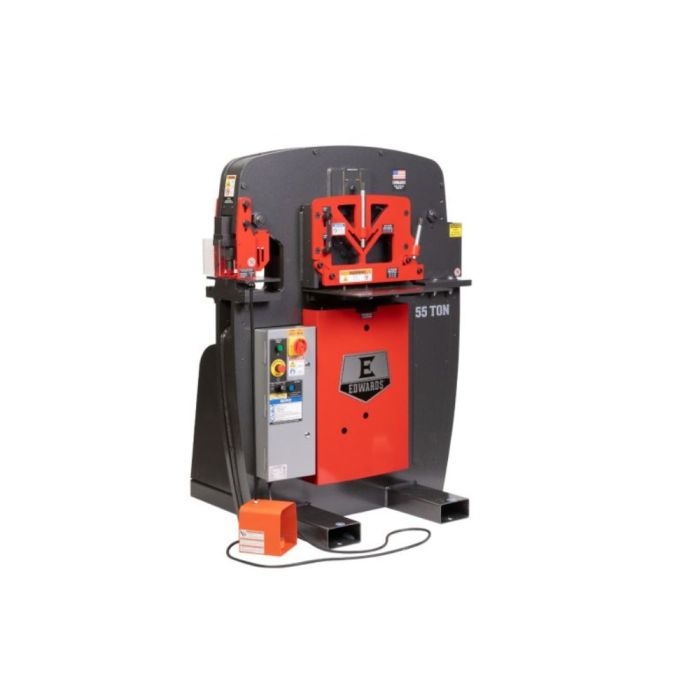

Edwards Ironworkers ED9-IW55-1P230, 55 Ton 1Ph 230V Hydraulic Ironworker
SKU
ED9-IW55-1P230
Special Price $15,119.10 Regular Price $16,799.00
Ships direct from manufacturer?
The 55 Ton Ironworker delivers the power and versatility needed for demanding fabrication and maintenance applications. With four workstations and 11 interchangeable attachments, it allows for easy customization to suit various metalworking needs. ETL/UL-approved controls ensure compliance with safety standards, while bright LED lighting and an open-style guard enhance visibility for precision work. The integrated jog button provides seamless switching between jog mode and standard mode, adding another layer of safety and control. Built with heavy-duty, USA-made steel construction, this machine offers long-term durability and reliable performance.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325556308 |
| Features |
|
| Horsepower | 5 HP |
| Motor Phase | 1 Ph |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 23 Amps |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height | 39-7/8" |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity | 3/8" x 14", 1/2" x 12", 3/4" x 4" |
| Flat Bar Shear Max Round | 7/8" |
| Flat Bar Shear Max Square | 7/8" |
| Flat Bar Shear Rating | 55 Tons |
| Flat Bar Shear Work Height | 34-1/2" |
| Hydraulic Pump (GPM) | 3-1/2" |
| Hydraulics (GPM) | 3-1/2" |
| Hydraulics (PSI) | 2500 Psi |
| Model Number | IW55-1P230 |
| Voltage | 230V |
| Motor Speed (RPM) | 1,725 RPM |
| Open Station Open Height | 8-1/8" |
| Open Station Shut Height | 6-7/8" |
| Open Station Stroke | 1-1/4" |
| Open Station Throat Depth | 11-3/16" |
| Open Station Work Height | 34-1/2" |
| Open Workstation Throat Depth | 11-3/16" |
| Open Workstation Work Height | 34-1/2" |
| Optional Coper Notcher Work Height | 39-1/2" |
| Overall Dimensions (L x W x H) | 36-1/8" x 44-3/8" x 55-1/4" |
| Product Dimensions | 44-3/8" x 36-1/8" x 55-1/4" |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity | 1-1/16" diam. in 5/8 mild steel |
| Punch Open Height | 8-1/8" |
| Punch Shut Height | 6-7/8" |
| Punch Stroke | 1-1/4" |
| Punch Throat Depth | 7-1/2" |
| Punch Work Height | 36-9/16" |
| Reservoir (Gal.) | 7 Gal. |
| Shipping Dimensions (L x W x H) | 45" x 51" x 62" |
| Valve Pressure (PSI) | 2750 PSI |
| Weight | 2430 lbs |
