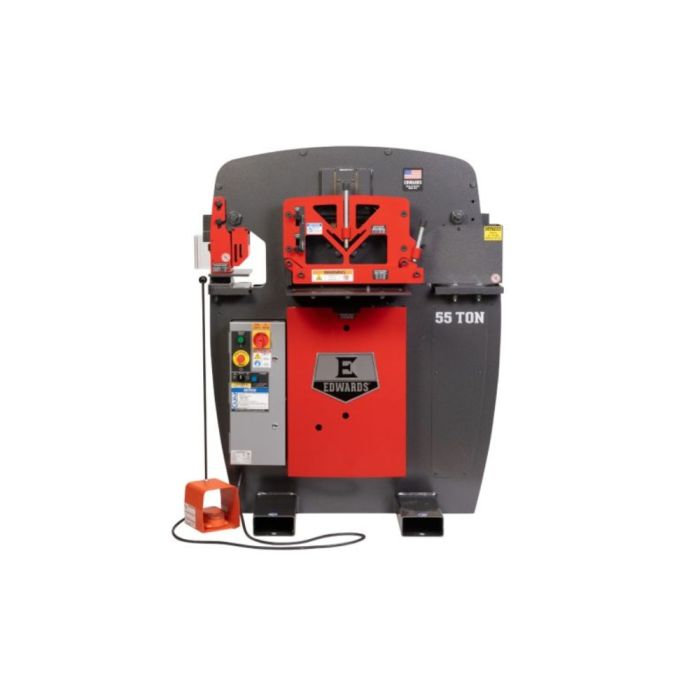

Edwards Ironworkers ED9-IW55-3P460, 55 Ton 3Ph 460V Hydraulic Ironworker
SKU
ED9-IW55-3P460
Special Price $15,119.10 Regular Price $16,799.00
Ships direct from manufacturer?
Designed for heavy-duty industrial applications, the 55 Ton Ironworker with 3 Phase 460V power delivers unmatched strength, precision, and safety. It features bright LED lights and an open-style guard for superior visibility, allowing for precise and controlled operation. The illuminated jog button provides quick transitions between jog mode and standard mode, ensuring safe and efficient workflow. With four workstations, 11 interchangeable attachments, and USA-made steel construction, this ironworker is built for maximum performance in demanding environments.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325556384 |
| Features |
|
| Horsepower | 5 HP |
| Motor Phase | 3 Ph |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 7 Amps |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height | 39-7/8" |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity | 3/8" x 14", 1/2" x 12", 3/4" x 4" |
| Flat Bar Shear Max Round | 7/8" |
| Flat Bar Shear Max Square | 7/8" |
| Flat Bar Shear Rating | 55 Tons |
| Flat Bar Shear Work Height | 34-1/2" |
| Hydraulic Pump (GPM) | 3-1/2" |
| Hydraulics (GPM) | 3-1/2" |
| Hydraulics (PSI) | 2500 Psi |
| Model Number | IW55-3P460 |
| Voltage | 460V |
| Motor Speed (RPM) | 1,725 RPM |
| Open Station Open Height | 8-1/8" |
| Open Station Shut Height | 6-7/8" |
| Open Station Stroke | 1-1/4" |
| Open Station Throat Depth | 11-3/16" |
| Open Station Work Height | 34-1/2" |
| Open Workstation Throat Depth | 11-3/16" |
| Open Workstation Work Height | 34-1/2" |
| Optional Coper Notcher Work Height | 39-1/2" |
| Overall Dimensions (L x W x H) | 36-1/8" x 44-3/8" x 55-1/4" |
| Product Dimensions | 44-3/8" x 36-1/8" x 55-1/4" |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity | 1-1/16" diam. in 5/8 mild steel |
| Punch Open Height | 8-1/8" |
| Punch Shut Height | 6-7/8" |
| Punch Stroke | 1-1/4" |
| Punch Throat Depth | 7-1/2" |
| Punch Work Height | 36-9/16" |
| Reservoir (Gal.) | 7 Gal. |
| Shipping Dimensions (L x W x H) | 45" x 51" x 62" |
| Valve Pressure (PSI) | 2750 PSI |
| Weight | 2430 lbs |
