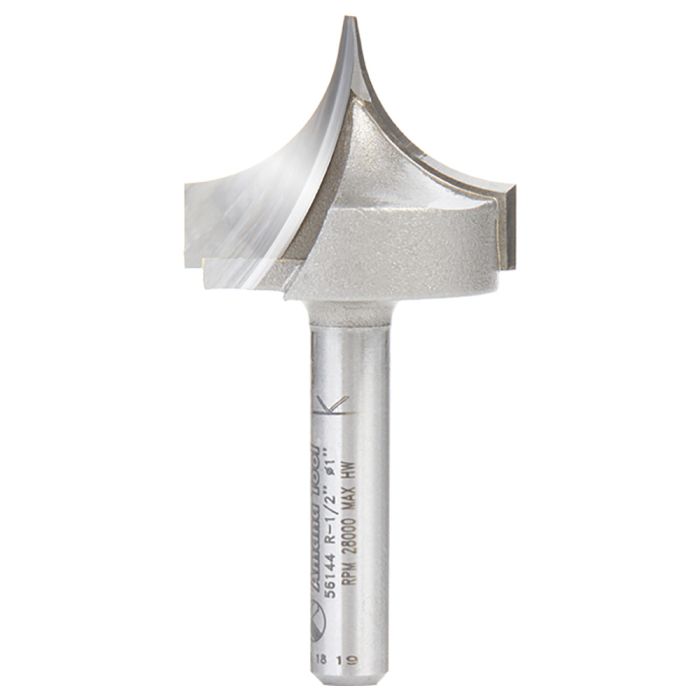

Amana Tool 56144 1" x 1/4" Carbide Tipped Point Cutting Roundover Router Bit
Ships direct from manufacturer
For lettering, engraving, signmaking, fluting and decorative trimming.
Note: Due to very fine plunge point, bit is not guaranteed against breakage.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| Application | For Lettering, Engraving, Signmaking, Fluting and Decorative Trimming |
|---|
| Flutes | 2 |
|---|
| Material | Carbide Tip |
|---|
| Type | Router Bit |
|---|
| Diameter (D) | 1" |
|---|
| Inner Diameter (D1) | 0.035" |
|---|
| Radius (R) | 1/2" |
|---|
| Cutting Height (B) | 3/4" |
|---|
| Cutting Height (B1) | 1/2" |
|---|
| Shank Diameter (d) | 1/4" |
|---|
| Overall Length (L) | 2" |
|---|
| Style | Point Cutting Roundover |
|---|
| Maximum Speed (RPM) | 28,000 RPM |
|---|
| IPM* / Chip Load Per Tooth (Hardwood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Softwood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Plastic) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Plywood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (MDF) | 180" / 0.0048" |
|---|
