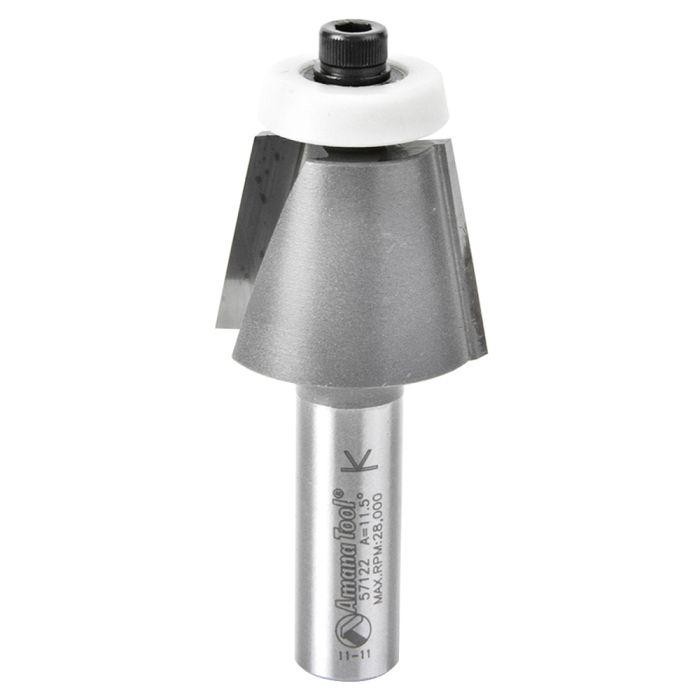

Amana Tool 57122 1 1/4" Carbide Tipped Undermount Bowl Solid Surface Router Bit
SKU
57122
$109.49
Ships direct from manufacturer ?
The bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian sink and bowl #'s 802S, 804S, 805S, 809S and 871S.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868557122 |
| Features |
|
| Replacement Bearing | 47726 |
| Type | Undermount Bowl |
| A | 1/2", 3/4" |
| Angle(a°) | 11.5 Deg |
| Ball Bearing | Lower |
| Cutter Height(B) | 15/16" |
| Diameter(D) | 1" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 3" |
| Shank(d) | 1/2" |
| Tool No. | 57122 |
| Style | Bevel |
|---|---|
| Diameter(D) | 1 1/4" |
| Cutter Height(B) | 15/16" |
| Shank(d) | 1/2" |
| Flutes | 2 |
| Angle(a°) | 11.5 Deg |
| Replacement Bearing | 47726 |
| A | 1/2" - 3/4" |
| Max. RPM | 28,000 RPM |
| Overall Length(L) | 3" |
