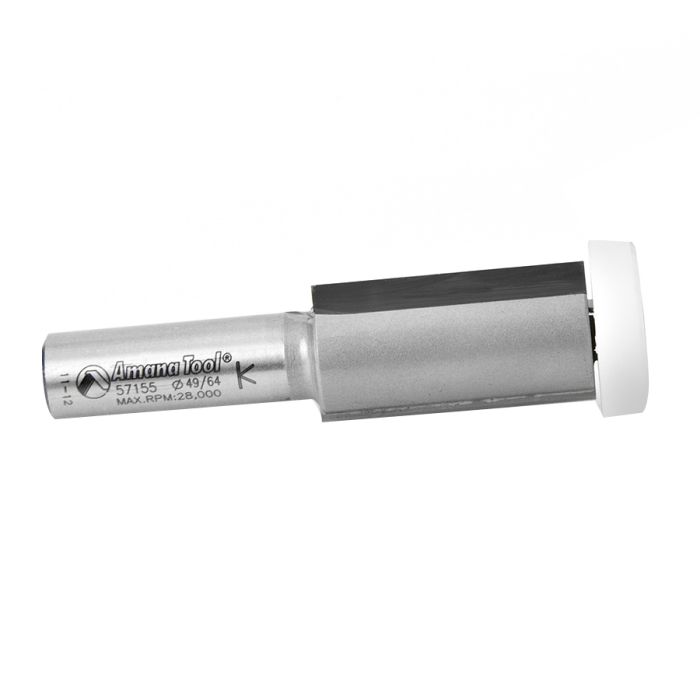

Amana Tool 57155 49/64" Carbide Tipped Sink & Trim Router Bit with Ultra-Glide Ball Bearing Guide Solid Surface
SKU
57155
$76.87
Ships direct from manufacturer ?
This bit is designed specifically for use for the Karran stainless steel edgesinks for laminate and 1/2 inch solid surface materials. They trim the counter-top edge after the bowl is mounted. Trim a sink cutout flush with the bowl in stages using these "over-hang" and flush trim bits in tandem. The overhang bits are equipped with non-marring Ultra-Glide bearings that are tapered to match the slope of the bowl's side. A first pass with the appropriate overhang bit cleans the cutout edge, leaving a very slight overhang at the underside of the counter. A pass with the flush-trim bit completes the operation.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868557155 |
| Includes | 47733 Bearing |
| PDFs | |
| Replacement Bearing | 47732 |
| Type | Router Bit |
| Countertop Thickness | 1/2", 3/4" |
| Cutter Height(B) | 1 1/2" |
| Cutting Diameter(D) | 49/64" |
| Diameter(D) | 49/64" |
| Flutes | 2 |
| Length(L) | 3 1/2" |
| Material | Carbide Tip |
| RPM | 28,000 RPM |
| Screw # | coming soon |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 57155 |
| Suitable for Use With | Karran Stainless Steel Edgesinks |
| Diameter(D) | 49/64" |
|---|---|
| Cutter Height(B) | 1-1/2" |
| Shank(d) | 1/2" |
| Overall Length(L) | 3-1/2" |
| Flutes | 2 |
| Angle (a°) | 5 Deg |
| Replacement Bearing | 47733 |
| Style | 1/8 Over Hang |
| A | 1/2" - 3/4" |
| Max. RPM | 28,000 RPM |
