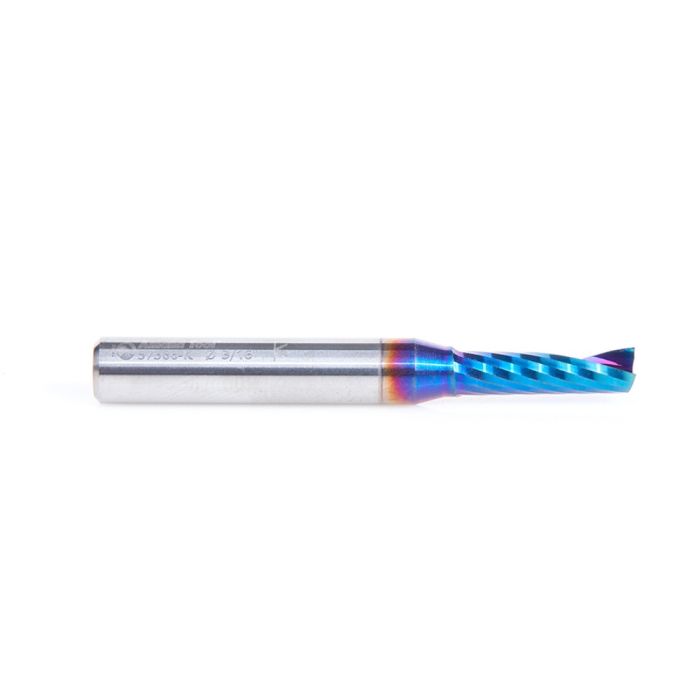

Amana Tool 57366-K Spektra 3/16" x 1/4" x 5/8" Up-Cut Improved Plastic Cutting Router Bit

Solid Carbide CNC Spektra Extreme Tool Life Coated Spiral 'O' Flute, Plastic Cutting for Improved Bottom Surface Finish 3/16 Dia x 5/8 x 1/4 Inch Shank Up-Cut Router Bit.

For improved bottom surface finish.

To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas Lucite) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Left hand helix left hand cut.

*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

**A soft plastic cardboard made with super soft super flexible PVC.

***Gatorfoam Foam Board a polystyrene foam board bonded between two layers of Luxcell wood-fiber veneer.

****Decorative high-pressure compact laminate (HPL) with an integral surface.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

Benefits of Mirror-Finish: Razor sharp cutting edge, Effortless chip removal, Helps prevent chip re-welding, Extends tool life, Exceptional cut quality, Dissipates heat well and prevents melting.

Amana Tool solid carbide router bits provide consistent, repeatable quality. Every tool is guaranteed to match the geometry on the prints, every time on every order. Best control of carbide grades for woodworking, and absolute control of quality standards on all carbide blanks.

THE ONLY Spektra Coated Bits.

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.
