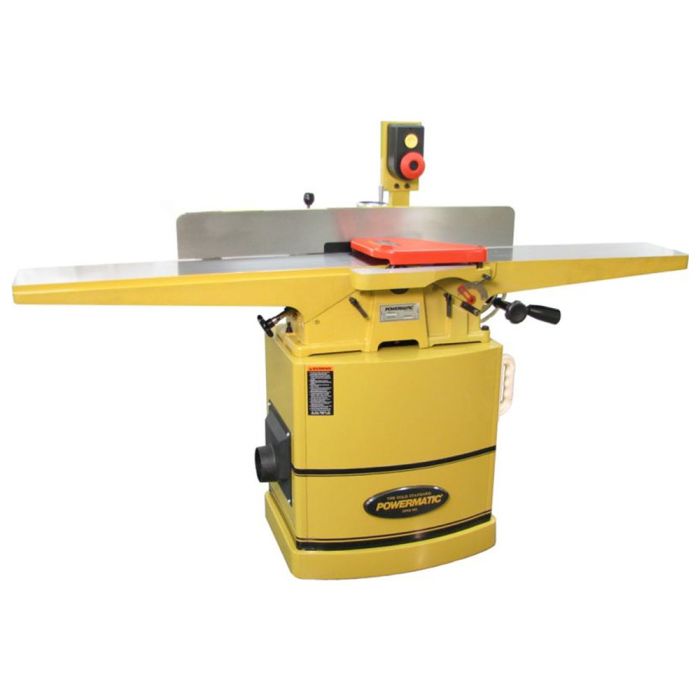

Powermatic 1610084K 60C 230V 8" Jointer, 2HP/1Ph

SKU
PM9-1610084K
$3,343.00
Ships direct from manufacturer?
This 8 inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple hand wheel. The tables provide 73 long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a 3 knife cutter head or a helical cutter head with 4-sided knife inserts. The operating switch is high mounted for easy reach and the push blocks have a magnetic base - store them on any metallic surface for instant access.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275598534
Features
  • High-speed heat-treated steel knives
  • Extra long tables are mounted on dovetailed ways, for extended work piece support
  • Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
  • High mount switch for operator convenience
  • Hand wheel operated worm gear system for smooth fence tilting
  • Magnetic push blocks can be stored on the machine within constant reach
  • Non-mar fence insert protects table surface
  • Large extension rest on infeed table for rabbeting
PDFs
Horsepower2 HP
Motor Phase1 Ph
Warranty

5 Year

Recommended Circuit Size20 Amps
Motor Voltage230 V
Prewired Voltage230 V
Motor Current9 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward Deg
Fence Size Length38"
Fence Size Height4 3/4"
Table Height from Floor32"
Infeed Table Length35 1/4"
Standard Knife Length8"
Standard Knife Width11/16"
Standard Knife Thickness1/8"
Cuts Per Minute21,000 CPM
Number of Knives3
Cutting Capacity Width8"
Cutting Capacity Depth1/2"
Outfeed Table Length35 1/2"
Table Size Length73"
Table Size Width8 1/2"
Rabbeting Capacity1/2"
