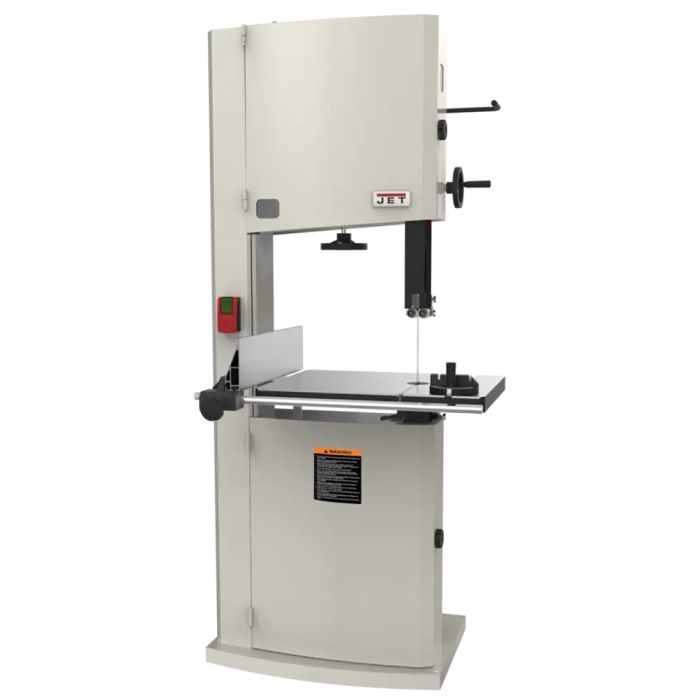

JET 714850 20" 230V Band Saw, 5HP

SKU
JT9-714850
$5,059.00
Ships direct from manufacturer?

Designed to perform, the JET 20 inch bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20 inch steel frame bandsaw is engineered to build great projects through superior performance.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
Features
  • 16 inch Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
  • 27-1/4 inch x 20 inch precision ground cast iron table for added stability and work support
  • Fence system features a micro-adjustable, dual-position side plate
  • Tool-less, independently adjustable, upper and lower ball bearing guides
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Single knob adjustment simplifies the blade tracking process
  • Blade tracking window provides clear view of blade during tracking
  • Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
  • Cast iron trunnion for maximum support and stability
  • Slotted table allows for front blade removal
  • Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
  • Round table insert features leveling screws for precise adjustment
  • Conveniently located dual 4 inch dust collection ports catch dust and chips at the source
  • Table tilts 5 degree left and 45 degree right to accommodate a wide variety of cuts
Horsepower5 HP
Motor Phase1 Ph
Stationary typeBand Saw
Warranty5 Year
Band Saw Size/Wheel Diameter20-1/4"
Cutting Capacity Width20"
Cutting Capacity Height16"
Blade Length158"
Blade Speed (SFPM)2530/4850 SFPM
Table Size (L x W)27-1/4" x 20" x 1-5/8"
Blade Width1" x 3TPI
Maximum Saw Blade Width1-1/2"
Minimum Saw Blade Width1/8"
Table Tilt-5,45 Deg
Table Height from Floor37"
Dust Collection Minimum CFM Required400 CFM
Dust Port Outside Diameter4" (x2)
Motor Voltage230 V
Motor Amperage22 Amps
Recommended Circuit Size40 Amps
